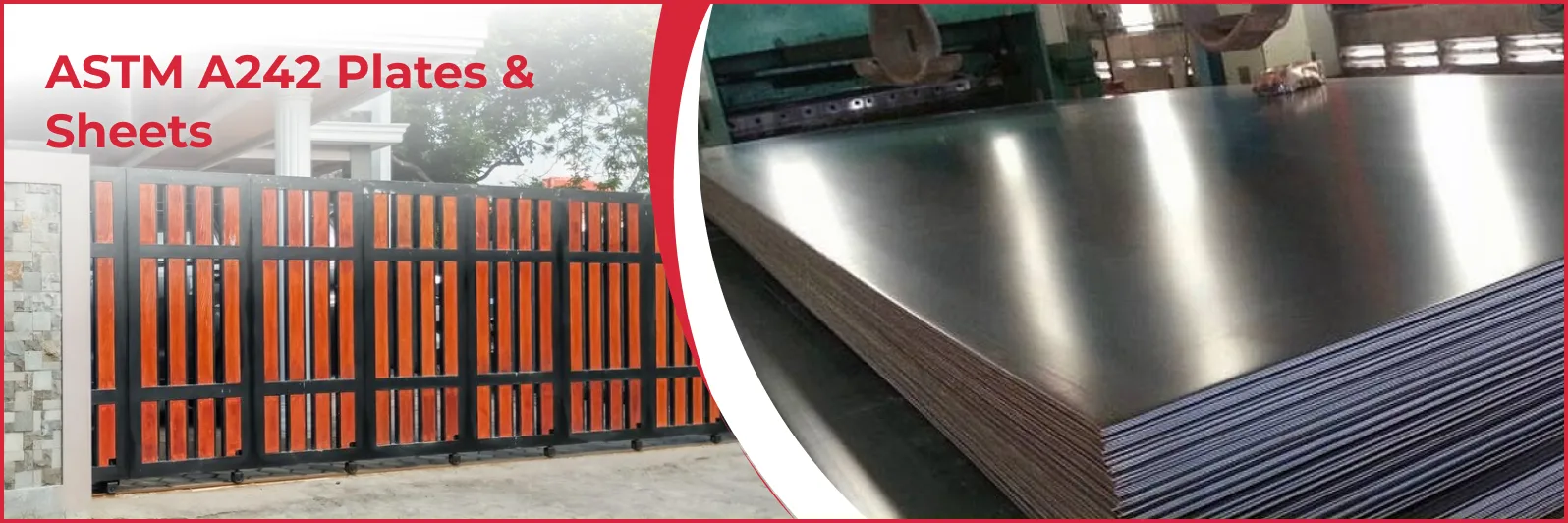

ASTM A242 Plates & Sheets Manufacturer & Supplier – USA Piping Solution

When your project demands steel that’s not only strong but also resilient against the elements for years, all without needing constant repainting, ASTM A242 Plates & Sheets become a prime consideration. At USA Piping Solution, supplying these high-strength, low-alloy (HSLA) weathering steels is a core part of what we do. Our goal is to provide materials that instill complete confidence. The unique allure of ASTM A242 Plates & Sheets lies in their natural ability to form a protective, rust-hued patina. This isn't a flaw; it's a dynamic, stable barrier that actively slows further corrosion, leading to longer-lasting structures and predictable lifecycle costs.

What is ASTM A242 Steel?

ASTM A242 steel, defined by the American Society for Testing and Materials, is a specialized grade engineered for structural applications where weight savings and durability are key. Its standout quality is its inherent "weathering" resistance to atmospheric corrosion – a property integral to the steel itself.

Self-Protecting Weather-Resistant Properties:

This resilience stems from a balanced chemical mix including copper, chromium, nickel, and phosphorus. When exposed, ASTM A242 initially forms rust that transforms into a dense, stable patina. This layer acts as a guardian, slowing further corrosion. If scratched, it tends to self-heal. This makes ASTM A242 Steel Sheet and plate a wise choice where painting is impractical or aesthetically undesirable.

Common Use: Bridge and Building Structures Without Paint:
A major reason designers choose ASTM A242 is for unpainted bridges and buildings. This cuts upfront painting costs and long-term maintenance, making Weathering Steel Plates an economically and environmentally sound choice for vital infrastructure.

A242 Steel Grades & Variants

The most common designation within ASTM A242 is Type 1.

ASTM A242 Type 1 Plates – Most Widely Used

A242 Type 1 Plates are the workhorse of this standard, known for good strength, weldability, formability, and standout corrosion resistance (often 4-6 times better than carbon steel). The alloying is precisely managed for reliable patina formation, suiting diverse applications where longevity and low maintenance are vital.

ASTM A242 Type 2 Plates – Higher Strength (if offered)

While Type 2 historically aimed for higher strength, Type 1 is now predominant. For specific high-strength weathering needs, other grades like ASTM A588 might be considered. Our focus for ASTM A242 Plates & Sheets is the trusted Type 1.

Available Conditions:
Typically supplied hot-rolled, ASTM A242 can also be provided normalized, or quenched and tempered (Q&T) after discussing your specific project needs.

Technical Specifications

USA Piping Solution ensures our ASTM A242 Plates & Sheets meet precise technical demands:

• Thickness: Generally 1.6 mm to 100 mm.
• Width: Up to 3000 mm.
• Length: Up to 12000 mm (custom lengths available).
• Conforms to: ASTM A242 / ASME SA242.
• Forms: Plates, Sheets, Coils (availability varies), Cut-to-Size.

Chemical & Mechanical Properties

The performance of Corten A242 Plates comes from their specific chemistry and resulting mechanical strength.

Key Chemical Elements (Typical %):
C (≤0.12%), Mn (≤1.00%), P (0.06–0.15%), S (≤0.05%), Si (≤0.75%), Cu (0.25–0.55%), Cr (0.30–1.25%), Ni (≤0.65%). This mix delivers strength and weathering ability.

Mechanical Strength (Typical for A242 Type 1):

• Yield Strength (Min): ≥ 345 MPa (≥ 50 ksi).
• Tensile Strength: 480 – 630 MPa (70 – 91 ksi).
• Elongation (Min): ≥ 20-21%.
  These figures confirm Corrosion Resistant Steel Plates like ASTM A242 can handle serious loads.

Applications & Use Cases

The blend of strength, durability, and unique aesthetics makes ASTM A242 Plates & Sheets versatile:

• Infrastructure & Bridges: Ideal for unpainted bridges, reducing lifecycle costs.
• Architectural Facades & Wall Panels: Offers striking visual appeal. (See also: Corten Steel Sheets)
• Railway Cars & Container Fabrication: Extends service life in exposed conditions.
• Structural Towers & Supports: For towers needing outdoor durability.
• Art Installations & Public Spaces: Favored for its organic, evolving appearance.
• Chimneys & Ductwork: Industrial uses needing resistance to flue gases.
• (For tubular options, see Weathering Steel Pipes & Tubes.)

Testing & Certification

Quality is central at USA Piping Solution. Our ASTM A242 Plates & Sheets undergo rigorous testing:

• Ultrasonic Testing (UT): Detects internal flaws.
• Mill Test Certificate (MTC) as per EN 10204 3.1/3.2: Certifies compliance and includes specific batch test results.
• NABL Approved Test Reports: Independent verification of chemical/mechanical properties.
• Third-Party Inspection (TPI): Available on demand from recognized agencies.

This ensures you receive high-integrity ASTM A242 Weathering Steel Plates.

Why Choose USA Piping Solution?

Partner with USA Piping Solution for your ASTM A242 Plates & Sheets needs and gain a dedicated ally:

• Responsive Turnaround: Efficient processing for timely delivery.
• Precision Processing: CNC cutting, shearing, waterjet services for custom parts.
• Quality Sourcing: Materials from top mills with full traceability.
• Bulk Supply Capability: Equipped for large orders for infrastructure and EPC clients. (Consider ASTM A588 Plates for other weathering steel needs.)
• Knowledgeable Support: Expert technical guidance from material specialists.

Final Call to Action

Looking for long-lasting ASTM A242 Plates & Sheets for your next project? Contact USA Piping Solution for corrosion-resistant steel with global delivery and mill certification.

Our ASTM A242 Plates & Sheets offer the perfect blend of strength, longevity, and aesthetic appeal. Reach out to our expert team today to discuss your requirements, request a quote, or learn how our Weathering Steel Plates can bring lasting value to your endeavors. Trust USA Piping Solution for premium weathering steel solutions.

Request Your ASTM A242 Plates & Sheets Quote Today!
