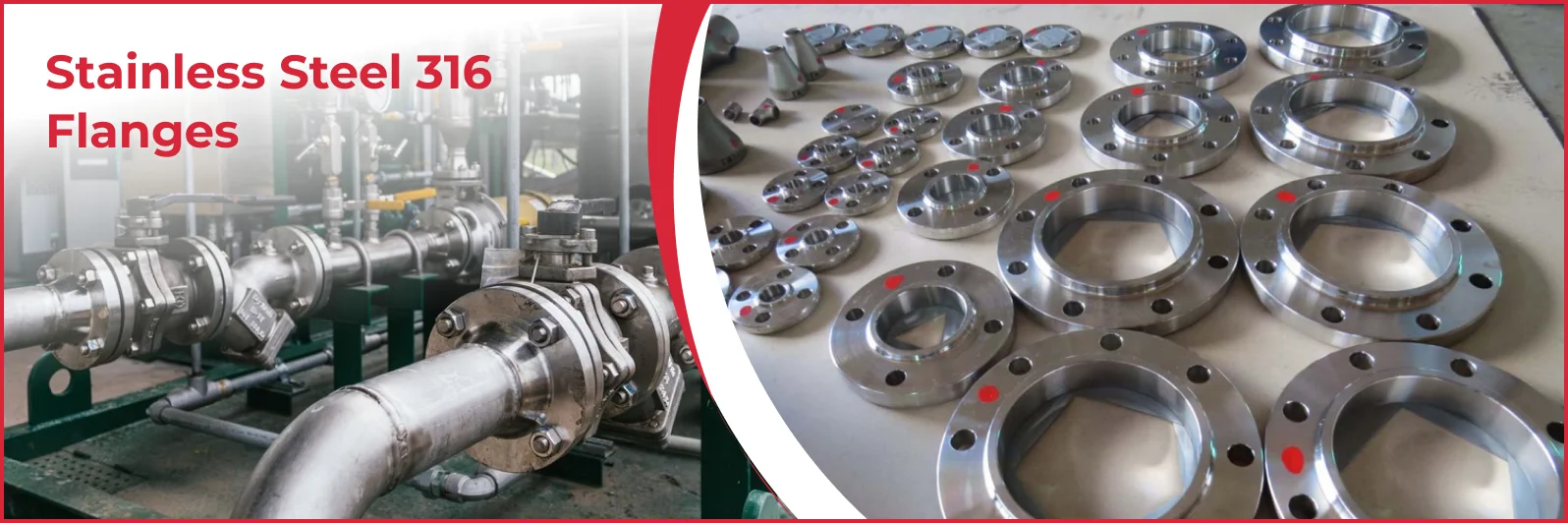

Stainless Steel 316 Flanges Supplier USA

USA Piping Solution is your go-to source for high-caliber Stainless Steel 316 Flanges. We manufacture and supply these essential components, specifically engineered to stand up to the toughest industrial conditions where lasting performance matters. You'll find we offer a full range of flange types, sizes, and pressure classes, all built according to strict international standards for dependable system integration. Whether you need readily available ASTM A182 F316 Flanges or have custom requirements, consider USA Piping Solution your project partner.

What are Stainless Steel 316 Flanges?

So, what exactly are Stainless Steel 316 Flanges? Think of them as critical connectors in any piping network. They join pipes to valves, pumps, and other pieces of equipment, making assembly and future maintenance much easier. The key difference lies in the material itself: Grade 316 stainless steel. This isn't just standard stainless; it's an austenitic alloy with chromium, nickel, and a very important addition – about 2-3% molybdenum.

That molybdenum is the game-changer. It dramatically steps up the material's resistance to general corrosion and, crucially, gives it superior defense against pitting and crevice corrosion. This is particularly important in environments loaded with chlorides, like seawater applications or certain chemical processing lines, where standard SS 304 might struggle over time.

You'll frequently see these flanges labeled as dual-certified ASTM A182 F316/F316L. That 'L' means low carbon content (usually 0.03% maximum). Why does that matter? Lower carbon significantly reduces the risk of carbide precipitation during welding – a phenomenon that can lead to corrosion along the weld seams. Using 316L helps maintain corrosion resistance, especially for heavier welded sections or parts that will face corrosive service right after fabrication. Forged for strength, SS 316 flanges bring solid mechanical properties and reliable performance across a good range of temperatures.

Types of Stainless Steel 316 Flanges

Choosing the right flange style impacts everything from system integrity to installation ease and overall cost. At USA Piping Solution, we carry a wide variety of Stainless Steel 316 Flanges to cover different job requirements:

Weld Neck Flange (WNRF)

Often the preferred choice for demanding services, you'll recognize the 316 Weld Neck Flange by its characteristic long, tapered hub. This design isn't just for looks; it provides excellent stress distribution from flange to pipe, adding strength to the connection.

Connection: It's joined to the pipe with a full penetration butt weld, creating a smooth, continuous bore.
Advantages: Stands up exceptionally well to high pressures, extreme temperatures (both high and low), and conditions involving vibration or fluctuating loads. The weld is easily inspected via radiography.
Use: You see these everywhere in critical lines – refineries, chemical plants, power generation facilities, and major pipelines depend on them.

Slip-On Flange (SORF)

As the name implies, the SS 316 Slip-On Flange slides directly onto the pipe end. It requires two fillet welds to secure it: one on the outside (hub-to-pipe) and one on the inside.

Connection: Fastened with two fillet welds.
Advantages: Typically less expensive upfront than Weld Necks and offer a bit more flexibility in alignment before welding. Pipe cutting doesn't need to be quite as precise.
Limitations: Generally offers lower strength and fatigue resistance compared to a Weld Neck connection. Usually avoided in high-stress or severe service situations.
Use: Well-suited for lower-pressure applications, utility services like water or air, and less critical process lines.

Blind Flange (BLRF)

Think of Stainless Steel 316 Blind Flanges as solid caps for your piping system. They're used to seal off the end of a pipe, a valve opening, or a pressure vessel port. They have bolt holes but no central opening for flow.

Connection: Simply bolted onto a mating flange using a gasket to create the seal.
Advantages: Provide easy access for inspection or system modifications without needing to cut pipe. They are designed to handle the full system pressure acting on their surface.
Use: Common for terminating pipe runs, isolating equipment sections, or covering vessel access points (manways).

Socket Weld Flange (SWRF)

Socket Weld flanges have a built-in recess, or socket, that the pipe end fits into. A single fillet weld on the outside secures the pipe within the socket.

Connection: Pipe slips into the socket, then an external fillet weld is applied.
Advantages: Offers relatively smooth flow compared to threaded connections and is fairly easy to install, especially on smaller pipes. Provides good static strength.
Limitations: The small gap between the pipe end and the socket bottom can sometimes trap material, potentially leading to crevice corrosion. Best suited for smaller pipe sizes (typically NPS 4 or less) under moderate conditions.
Use: Often used for small-diameter auxiliary piping systems where strength is needed but the highest integrity isn't paramount.

Threaded Flange (Screwed)

When welding isn't an option (due to hazards or practicality), Threaded flanges provide a mechanical connection. They have internal threads that match external threads cut onto the pipe.

Connection: Screws directly onto a threaded pipe end. Sometimes a seal weld is added for extra leak protection, but the threads provide the primary mechanical joint.
Advantages: Ideal for areas where welding sparks pose a risk (like explosive environments) or where welding facilities aren't available. Installation is straightforward.
Limitations: Generally restricted to lower pressure and temperature duties. Threads can be potential leak paths, especially under vibration or thermal cycling.
Use: Found in low-pressure utility systems, small piping runs, and zones where welding is prohibited.

Beyond these common types, USA Piping Solution can also help you find Lap Joint flanges (used with stub ends), Orifice flanges (for flow measurement), Spectacle Blinds, and even custom-machined SS 316 flanges based on your specific designs.

Stainless Steel 316 Flange Specifications

Consistency and safety in piping systems depend on adhering to established specifications. We ensure our Stainless Steel 316 Flanges meet the requirements of key international standards:

ASTM A182 / ASME SA182

This is the foundational material specification for forged stainless steel flanges like Grade F316 and F316L, especially those intended for higher temperature service. It details everything from the manufacturing process and required heat treatments to the precise chemical composition, expected mechanical properties, testing methods, and proper marking. Compliance ensures the material quality is up to par.

ANSI, DIN, BS, EN Standards

These standards focus primarily on the physical dimensions, pressure handling capabilities at different temperatures, allowable tolerances, and marking protocols. This ensures flanges from different manufacturers can be reliably interchanged.

ASME B16.5: The most widely used standard in North America for flanges up to 24 inches, defining dimensions for pressure classes 150# through 2500#. If you need an ANSI B16.5 316 Flange, this is usually the governing spec.
ASME B16.47 Series A & B: Covers larger diameter flanges (from 26" up to 60").
EN 1092-1: The primary European standard, using PN (Pressure Nominal) ratings.
Others: We're also familiar with and can supply flanges meeting British Standards (BS), German standards (DIN), Japanese (JIS), Australian (AS), and specific industry standards like AWWA upon request.

Chemical Composition and Mechanical Properties

What makes Stainless Steel 316 Flanges perform so well comes down to their specific chemical balance and the resulting mechanical strength. USA Piping Solution verifies that all supplied flanges meet or exceed the benchmarks set by standards like ASTM A182.

Chemical Composition (Typical % Weight)

Element	SS 316 (F316)	SS 316L (F316L)	Key Role
C	0.08 max	0.030 max	Hardness, Weldability
Cr	16.0 - 18.0	16.0 - 18.0	Corrosion Resistance
Ni	10.0 - 14.0	10.0 - 14.0	Structure, Ductility
Mo	2.0 - 3.0	2.0 - 3.0	Pitting/Crevice Resistance
Mn	2.0 max	2.0 max	Hot Working, Strength
Si	0.75 max	0.75 max	Deoxidizer
P, S	Low limits	Low limits	Impurities (Minimized)
N	0.10 max	0.10 max	Strength Boost

Mechanical Properties (Typical Minimums at Room Temp per ASTM A182)

Property	SS 316 (F316)	SS 316L (F316L)	Unit	What it Means
Tensile Strength	515 (75)	485 (70)	MPa (ksi)	Max pull before breaking
Yield Strength	205 (30)	170 (25)	MPa (ksi)	Point of permanent stretch
Elongation in 2"	30	30	%	How much it stretches
Hardness (Brinell)	217 max	217 max	HBW	Resistance to denting

Applications and Industries Served

Thanks to its excellent corrosion resistance (especially against chlorides), good strength, and weldability, Stainless Steel 316 Flanges are workhorses in many demanding industries:

Oil & Gas: Found on offshore platforms, in processing plants, handling mildly corrosive pipeline fluids, and within LNG facilities.
Petrochemical & Chemical Processing: Essential for reactors, complex piping networks, and heat exchangers dealing with aggressive chemicals and acids.
Pharmaceutical & Biotech: Used in hygienic systems where resistance to process materials and cleaning agents is non-negotiable.
Food & Beverage: Standard in dairy, brewing, and food production where cleanliness and resistance to food acids are critical.
Water Treatment & Desalination: Heavily used in plants handling seawater, brackish water, and various treatment chemicals.
Marine & Shipbuilding: Applied in seawater cooling loops, ballast systems, and general piping exposed to salt spray and marine conditions.
Power Generation: Employed in cooling water systems (especially those using sea or brackish water) and pollution control units like FGD scrubbers.
Pulp & Paper: Handle corrosive chemicals used in bleaching and processing stages.
Mining: Used in transporting abrasive slurries and in circuits processing corrosive leach solutions.

Stainless Steel 316 Flanges Size Chart

We stock Stainless Steel 316 Flanges covering the full spectrum of standard piping sizes:

ASME B16.5: Includes sizes from a small 1/2 inch (DN 15) all the way up to 24 inches (DN 600).
ASME B16.47 Series A & B: Handles the larger requirements, typically from 26 inches (DN 650) up to 60 inches (DN 1500). Need something even bigger? Just ask.

Remember, the exact dimensions – outer diameter, thickness, bolt circle pattern, bore size – will depend on the specific standard, size, and pressure class you need. Our team can provide detailed dimensional data for your specific request.

Surface Finish and Pressure Ratings

Two critical factors for a leak-free, safe flange joint are the finish of the sealing face and the flange's pressure rating.

Surface Finish (Flange Face): How the sealing face is prepared affects gasket performance. Common types are:

Raised Face (RF): The most frequent type. This raised area concentrates pressure on the gasket for a better seal. It usually has a specific serrated finish (typically 125-250 AARH) to effectively grip the gasket.
Flat Face (FF): The entire face is machined flat. Often used in lower-pressure situations or when mating with cast iron or non-metallic flanges.
Ring Type Joint (RTJ): Features a precisely machined groove that holds a soft metal ring gasket. This creates a very reliable metal-to-metal seal, excellent for high-pressure and high-temperature service.
Tongue & Groove (T&G) / Male & Female (M&F): These are interlocking designs that help align the gasket perfectly, used in specific applications.

Pressure Ratings: Flanges are rated for the pressure they can safely handle at given temperatures:

ASME/ANSI Classes: You'll see ratings like 150#, 300#, 600#, up to 2500#. Higher numbers mean higher pressure capability (though this rating decreases as temperature rises).
European PN Ratings: Denoted by 'PN' followed by a number (PN16, PN40, etc.), indicating the approximate pressure rating in bar at ambient temperature.

Choosing the correct pressure class (like an ANSI B16.5 316 Flange Class 150 or Class 600) for your system's operating conditions is absolutely vital for safety and performance.

Certifications and Quality Assurance

Quality isn't just a buzzword at USA Piping Solution; it's built into our process. We are committed to supplying Stainless Steel 316 Flanges that meet stringent industry demands. Here’s how we ensure quality:

Trusted Material Sources: We only work with reputable, vetted mills for our raw materials.
Standard Compliance: Manufacturing strictly follows recognized standards like ASTM, ASME, EN, etc.
Consistent Inspections: We perform dimensional and visual checks during and after manufacturing.
Detailed Certification: Material Test Certificates (MTCs) to EN 10204 3.1 come standard, confirming chemical and mechanical properties. We can also arrange for 3.2 certification witnessed by a third-party inspector.
Third-Party Inspection (TPI): We readily accommodate inspections by your chosen agency (SGS, BV, Lloyd's, etc.).
Optional Testing: Need extra assurance? We can arrange tests like PMI (Positive Material Identification), ultrasonic testing, corrosion tests, impact tests, or NACE compliance verification.
Full Traceability: We maintain records allowing us to trace every flange back to its original material source.
Secure Packaging: Your flanges are packed carefully to prevent damage during shipping.

Our operations are backed by systems like ISO 9001, ensuring a consistent focus on quality.

Why Choose USA Piping Solution for SS 316 Flanges?

When you choose USA Piping Solution for Stainless Steel 316 Flanges, you gain several key benefits:

Ready Inventory: We keep a significant stock of popular types like SS 316 Slip-On Flange, Weld Neck, and Blind Flanges across various sizes and classes, meaning faster delivery for you.
Assured Quality: You can trust that our flanges meet ASTM A182 F316 specs and international standards, complete with proper documentation.
Helpful Expertise: Our team knows flanges. We can help you navigate the specifications and choose the best option for your application.
Fair Pricing: Get high-quality materials at competitive prices, delivering real value.
Dependable Service: We focus on accurate order fulfillment and on-time delivery to keep your project moving.
Customer Commitment: We listen to your needs and aim to provide responsive, helpful service every time.
Guaranteed Traceability: Full material traceability comes standard.
Flexibility: If you need non-standard dimensions or special testing, let us know – we can often help.

Final Call to Action

For Stainless Steel 316 Flanges you can depend on, built for performance and longevity, connect with USA Piping Solution. Our combination of ready inventory, strict quality control, and technical support makes us a strong partner for your critical piping needs.

Contact USA Piping Solution today. Ask for a quote, get detailed specs on ASTM A182 F316 Flanges, or simply discuss your project. Whether it's a standard 316 Weld Neck Flange or numerous Stainless Steel 316 Blind Flanges, our team is here to help you source the right components.

Let's work together to ensure your project uses reliable, high-quality SS 316 flanges.

Request Your Stainless Steel 316 Flanges Quote Today!
