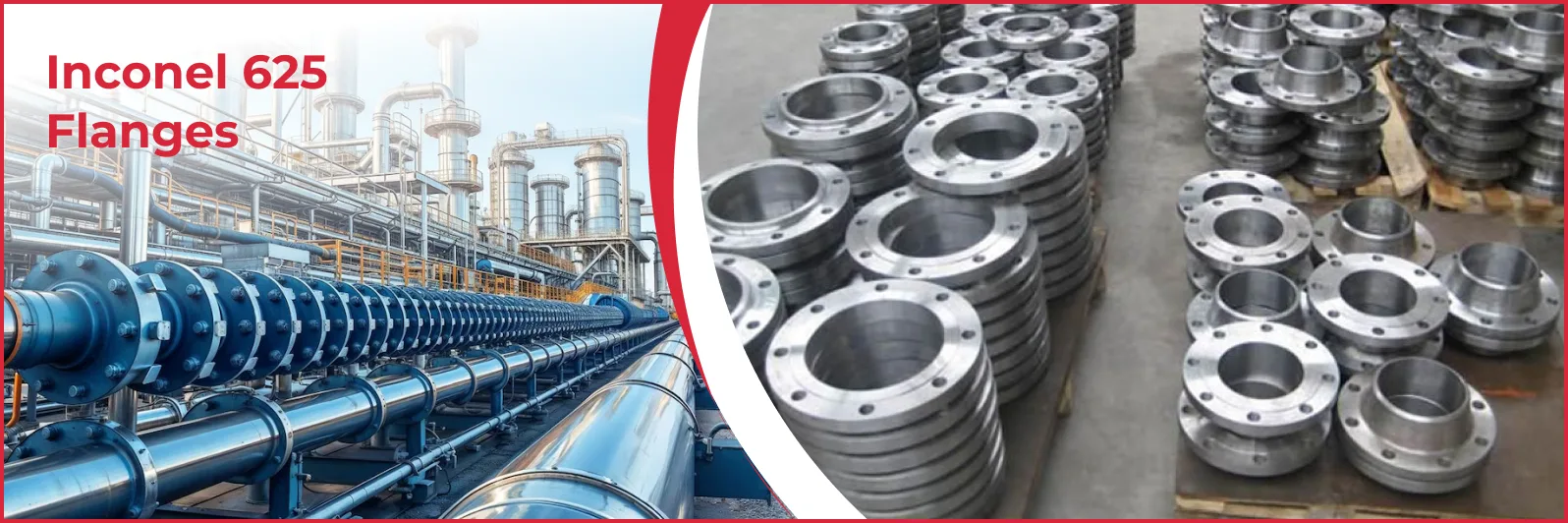

Inconel 625 Flanges: Your Solution for Extreme Industrial Demands – From USA Piping Solution

In high-stakes industrial operations, material choice is fundamental. At USA Piping Solution, we specialize in Inconel 625 Flanges (UNS N06625), a nickel-chromium-molybdenum superalloy renowned for exceptional resilience—a potent blend of high strength and remarkable corrosion resistance in severe environments. We combine advanced manufacturing with deep metallurgical know-how to produce Inconel 625 Flanges that exceed industry benchmarks. For EPC contractors, plant operators, and procurement leaders demanding reliability, our Alloy 625 Flanges are the trusted answer.

Understanding Inconel 625 Flanges: More Than Just a Connection

What makes Inconel 625 Flanges so respected? These robust connecting components, forged or machined from Inconel Alloy 625, boast a unique synergy: impressive strength, good fabricability, and outstanding corrosion resistance. The alloy’s nickel-chromium matrix, enhanced by molybdenum and niobium, gives Nickel Alloy 625 Flanges notable toughness and structural integrity from cryogenic temperatures to 1800°F (982°C).

A key feature is their superb resistance to pitting, crevice corrosion, and stress corrosion cracking (SCC). High molybdenum content wards off chloride-induced attacks, while niobium and molybdenum stiffen the alloy’s structure, providing high inherent strength without complex heat treatments. This ensures sustained performance in harsh conditions. This makes Inconel 625 Flanges common in challenging offshore and chemical processing environments, aerospace, and marine systems—wherever dependable, leak-free connections are vital against aggressive media and high pressures.

Exploring the Inconel 625 Flange Portfolio at USA Piping Solution

USA Piping Solution offers a curated selection of Inconel 625 Flanges for diverse industrial needs.

Weld Neck Flanges (WNRF): For Uncompromised Integrity

Recognizable by their long, tapered hub, Inconel 625 Weld Neck Flanges (WNRF) are preferred for high pressures, extreme temperatures, or intense heat. This design intelligently distributes stress to the adjoining pipe, lessening concentration at the hub’s base. The bore matches the pipe’s ID, promoting unimpeded flow. In critical services like petrochemical processing, Inconel 625 Weld Neck Flanges mean superior structural reliability and longer fatigue life.

Slip-On Flanges (SORF): Balancing Practicality with Performance

For lower-pressure systems, Inconel 625 Slip-On Flanges (SORF) are practical and economical. Installed by slipping over the pipe and welding internally/externally, they offer ease of alignment and lower initial cost. Inconel 625 SORF provide dependable corrosion resistance for general chemical processing and marine uses.

Blind Flanges (BLRF): Ensuring a Secure Seal

When sealing a pipeline or vessel opening, Inconel 625 Blind Flanges (BLRF) are used. These solid discs robustly handle system pressure and bolt loading, allowing easy maintenance access. Inconel 625's high strength suits them for high-pressure duties and corrosive environments, ensuring secure blanking.

Socket Weld Flanges: Ideal for Compact, High-Pressure Lines

For smaller diameter, high-pressure pipelines, Inconel 625 Socket Weld Flanges offer a strong connection. The pipe end is inserted into the socket and fillet-welded, creating a smooth bore. Inconel 625 ensures they withstand aggressive chemicals and elevated temperatures in chemical processing and instrumentation lines.

Lap Joint Flanges: Offering Flexibility in Assembly

Where ease of alignment and frequent dismantling are key, Inconel 625 Lap Joint Flanges (used with stub ends) are ideal. The flange slips over the stub end, allowing free rotation for bolt alignment—a significant advantage in complex piping or systems needing regular inspection. Inconel 625 Lap Joint Flanges maintain structural integrity, vital in corrosive settings.

Threaded Flanges: A Solution When Welding is Impractical

Inconel 625 Threaded Flanges create a mechanical joint by screwing onto pipes, avoiding welding. This suits hazardous areas. Typically for smaller pipes in lower-pressure/temperature services, Inconel 625 provides crucial corrosion resistance, especially for exposed threads.

RTJ and Custom Machined Flanges: For Specialized Requirements

For demanding sealing, Inconel 625 Ring Type Joint (RTJ) Flanges are specified for high-pressure/temperature services requiring a reliable metal-to-metal seal via a metallic ring gasket. USA Piping Solution also delivers Custom Machined Inconel 625 Flanges to your unique engineering drawings, accommodating special facings and bores.

Built on a Solid Foundation: Material Grades & Standards for Inconel 625

Every Inconel 625 Flange from USA Piping Solution adheres to international material grades and dimensional standards, ensuring compliance and interchangeability.

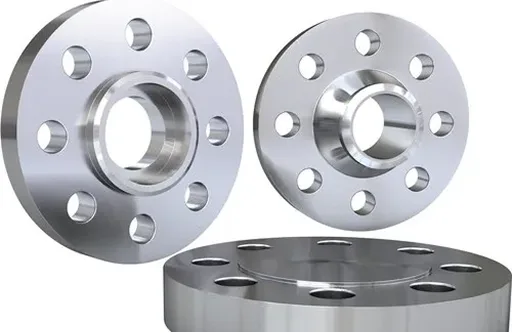

• ASTM B564 / ASME SB564: Definitive specifications for nickel alloy forgings, detailing chemical composition, mechanical properties, heat treatment, and testing for ASTM B564 Inconel 625 Flanges.
• UNS N06625 / Werkstoff Nr. 2.4856: Globally accepted designations for the Inconel 625 alloy grade.
• ANSI B16.5 / B16.47 (Class 150 to 2500): ASME standards defining dimensions, tolerances, pressure-temperature ratings, and materials for pipe flanges. B16.5 covers NPS ½-24; B16.47 addresses larger diameters (NPS 26-60, Series A & B).
• NACE MR0175 / ISO 15156 Compliance: For sour gas (H₂S) service, solution-annealed Inconel 625 generally meets NACE MR0175 requirements for specific conditions, offering robust resistance to sulfide stress cracking. We supply compliant UNS N06625 Flanges.

A Closer Look at Inconel 625: Its Chemical Nature & Mechanical Strength

The impressive performance of Inconel 625 Flanges stems from its engineered chemical composition and robust mechanical properties.

Typical Chemical Composition (Weight %):

Element	Nominal Content (%)	Element	Nominal Content (%)
Nickel (Ni)	~58.0 min.	Iron (Fe)	~5.0 max.
Chromium (Cr)	~20.0-23.0	Carbon (C)	~0.10 max.
Molybdenum (Mo)	~8.0-10.0	Niobium (Nb)+Ta	~3.15-4.15

Key Mechanical Strengths (Annealed, Typical Room Temp. - ASTM B564):

• Tensile Strength: Typically >120 ksi (827 MPa)
• Yield Strength (0.2% Offset): Generally >60 ksi (414 MPa)
• Elongation: Often ≥30%

Resisting Corrosion: Nickel Alloy 625 Flanges are versatile against corrosive challenges. High nickel/chromium resists oxidizing environments; significant molybdenum resists reducing conditions. This makes Inconel 625 effective against various acids, alkalis, salts, and chloride-ion stress-corrosion cracking, with admirable seawater performance.

Where Inconel 625 Flanges Prove Their Worth: Key Applications & Industries

Inconel 625 Flanges are indispensable across diverse demanding sectors:

• Subsea & Offshore: Critical for oil/gas infrastructure due to superior seawater corrosion resistance.
• Aerospace: Trusted for high-temperature strength in jet engines and turbine components.
• Chemical Processing: Handles aggressive chemicals (sulfuric, phosphoric, nitric acids) at elevated temperatures.
• Pollution Control: Robust resistance to acidic condensates in FGD scrubbers and incinerators.
• Nuclear Sector: Chosen for reactor core components due to high-temp mechanical properties and corrosion/irradiation resistance.
• Marine Engineering: Used in shipboard piping and components exposed to harsh marine elements.

These High Nickel Alloy Flanges assure extended service life, reduced maintenance, and enhanced safety.

Our Pledge to Quality: Rigorous Testing & Certifications at USA Piping Solution

Quality permeates our operations. Every Inconel 625 Flange undergoes rigorous testing and has comprehensive certifications.

• MTC to EN 10204 3.1 / 3.2: Standard EN 10204 3.1 MTCs affirm conformance with batch-specific test results. EN 10204 3.2 (third-party validated) can be arranged.
• PMI – A Standard Procedure: XRF analyzers confirm the chemical composition of Alloy 625 Flanges, ensuring material integrity.
• Ultrasonic Testing (UT): For critical applications, UT detects internal imperfections in forgings.
• Dimensional & Visual Inspections: Thorough checks against ASME standards and for surface defects.
• Liquid Penetrant Testing (PT): Uncovers minute surface-breaking discontinuities.
• ISO 9001:2015 Certified Operation: Our QMS governs all processes, reflecting dedication to consistent quality.
• NABL-Accredited Lab Reports (On Request): We can coordinate specialized tests through NABL-accredited labs.

Why USA Piping Solution Should Be Your Partner for Inconel 625 Flanges

Choosing USA Piping Solution means a partnership built on reliability and expertise.

• Significant Ready Stock: Substantial inventory of Inconel 625 Flanges (various types, sizes, standards) for agile response.
• Expertise in Custom Machining: Skilled in producing custom Inconel 625 Flanges to your engineering drawings.
• Agile Turnaround & Global Logistics: Optimized systems for swift order processing and efficient international shipping of ASTM B564 Inconel 625 Flanges.
• A Trusted Name: Proven supplier to leading EPCs and end-users worldwide, built on the performance of our High Nickel Alloy Flanges.
• Unyielding Commitment to Quality: ISO 9001:2015 certification promises premium Nickel Alloy 625 Flanges via rigorous QC.
• Accessible Technical Support: Seasoned experts offer practical guidance in selecting Inconel 625 flange solutions.

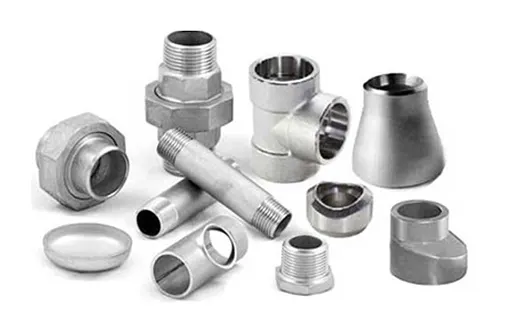

Expanding Your Options: Related Piping Products from Our Catalog

Consolidate your procurement with USA Piping Solution's complementary range

Taking the Next Step Towards High-Performance Inconel 625 Flanges

If your operations demand the robust, corrosion-resistant performance of Inconel 625 Flanges, USA Piping Solution is your specialist for premium Alloy 625 Flanges, manufactured to ASTM B564 standards and tailored to your specifications.

Connect with USA Piping Solution today. Let's discuss your bulk order needs for Inconel 625 Flanges, detailed certifications, competitive quotes, and our commitment to prompt global delivery. Allow our experienced team to support your UNS N06625 Flange projects.

Request Your Inconel 625 Flanges Quote Today!
