USA Piping Solution is a key national supplier providing access to high-performance Drill Pipes & Tubes. As crucial elements of the drill string, these components are engineered to withstand extreme downhole conditions during exploration and extraction activities. We facilitate the sourcing and distribution of materials meeting rigorous industry standards, primarily API 5DP, ensuring reliability for the oil, gas, geothermal, and mining sectors. Depend on USA Piping Solution for timely access to certified Drill Pipes & Tubes via our extensive US logistics network.

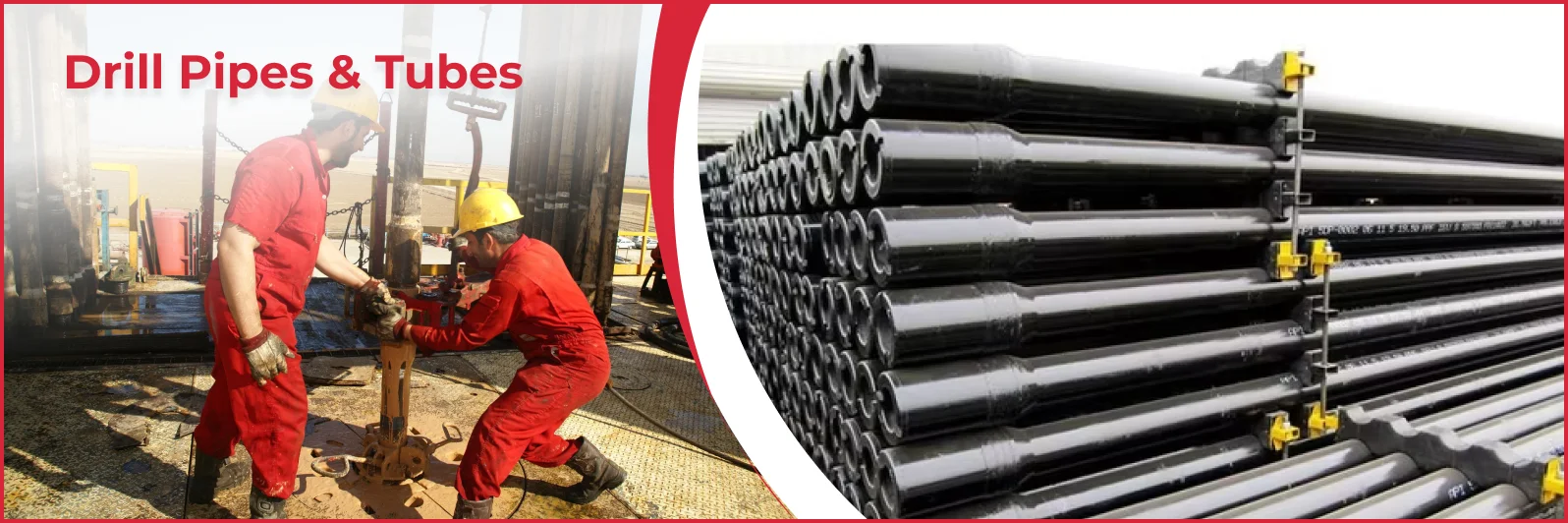

What are Drill Pipes & Tubes?
Drill Pipes & Tubes are the principal components forming the drill string used in boring operations, particularly for oil, gas, and geothermal wells. These heavy-duty seamless tubes transmit rotational torque from the surface to the drill bit while simultaneously acting as conduits for circulating drilling fluids. Operating under high tensile loads, torque, internal/external pressures, and fatigue stresses, API Drill Pipe integrity is critical. Unlike stationary casing or tubing, drill pipe endures dynamic operational forces. Failure can lead to significant downtime and expense, demanding stringent manufacturing standards (primarily API 5DP) focused on strength, toughness, and durability. These Drilling Tubes are engineered specifically for the harsh demands of subsurface drilling.
Drill Pipe Specifications
Drill pipe performance and interchangeability are governed by strict industry specifications, predominantly from the American Petroleum Institute (API). USA Piping Solution ensures sourced materials adhere to these established benchmarks.
Technical Specifications
| Property | Description |
|---|---|
| Governing Standard | API Specification 5DP (primary); ISO 11961 (international equivalent). |
| Manufacturing | Seamless production mandatory for tube body integrity. |
| Steel Grades (API 5DP) | Defined by minimum yield strength (ksi): E-75, X-95, G-105, S-135. Higher grades suit deeper, more challenging wells. |
| Sizes (OD) | Common range is 2 ⅜” to 6 ⅝” OD. |
| Weight/Wall | Specified by nominal weight per foot, corresponding to specific wall thicknesses. |
| Length Ranges (API) | R1 (18-22 ft), R2 (27-30 ft - most common), R3 (38-45 ft). |
| Tool Joints | Threaded connectors (Pin/Box) welded to upset pipe ends. Specified by API Spec 7-1, common types include NC, IF, FH, REG. Material is typically high-strength alloy steel. |
| Upset | Thickened pipe ends (Internal IU, External EU, or Internal-External IEU) provide strength for tool joint attachment. |
| Internal Coating (Optional) | Plastic or epoxy linings applied for corrosion mitigation and improved hydraulics. |
| Hardbanding (Optional) | Wear-resistant material applied to tool joints to reduce abrasion. |
Chemical Composition and Mechanical Properties
The capacity of Drill Pipes & Tubes to endure extreme downhole forces is determined by controlled steel chemistry and verified mechanical properties, achieved through specific heat treatments.
Chemical Composition (Typical)
API 5DP emphasizes performance over specific chemistry, but typical low-alloy steel compositions include controlled levels of Carbon, Manganese, and potentially Cr, Mo, V, Ni (especially in higher grades) to achieve target strength and toughness. Impurities like P and S are strictly limited.
Mechanical Properties
Minimum mechanical properties are mandated by API 5DP for each grade. Quench and Temper heat treatment is standard.
| API 5DP Grade | Min. Yield Strength (psi / MPa) | Min. Tensile Strength (psi / MPa) | Toughness (Impact Req.) | Hardness Range (Typical) |
|---|---|---|---|---|
| E-75 | 75,000 / 517 | 100,000 / 689 | API 5DP Minimums Met | Lower range |
| X-95 | 95,000 / 655 | 105,000 / 724 | API 5DP Minimums Met | Mid-range |
| G-105 | 105,000 / 724 | 115,000 / 793 | API 5DP Minimums Met | Mid-to-upper range |
| S-135 | 135,000 / 931 | 145,000 / 1000 | API 5DP Minimums Met | Upper range |
Key Performance Factors: Strength (tensile, torque), Toughness (impact resistance against fracture), Fatigue Resistance (withstanding cyclic loads), and controlled Hardness (for wear and sour service resistance) are critical. Extensive Non-Destructive Examination (NDE) including UT, EMI, and MPI is mandatory.
Types of Drill Pipes Available
A complete drill string utilizes different types of tubulars. Key types related to Drill Pipes & Tubes include:
- Standard API Drill Pipe: Forms the majority of the string length. Comprises the seamless tube body (Grades E75 to S135) with factory-welded tool joints for connection. Transmits rotation, torque, and fluid.
- Heavy Weight Drill Pipe (HWDP): Thicker-walled pipes with longer tool joints. Used as a transition between standard drill pipe and heavy drill collars to reduce stress concentrations and fatigue. Also adds some weight on bit, particularly in directional drilling. Often features a central wear pad. Governed by API RP 7G / Spec 7-1 concepts.
- Drill Collars (Related): Very heavy, stiff tubes placed directly above the drill bit assembly. Primarily provide weight on bit (WOB) for drilling efficiency and directional stability. Governed by API Spec 7-1.
USA Piping Solution focuses on sourcing standard API Drill Pipe and Heavy Weight Drill Pipe.
Applications and Industries Served
Drill Pipes & Tubes are specialized tools essential for industries involved in accessing subsurface resources:
- Oil & Gas Exploration/Production: The primary user, employing drill pipe for onshore and offshore drilling of wells (vertical, directional, horizontal) to find and produce hydrocarbons. Demanding environments often require high-strength grades (G, S).
- Geothermal Energy: Used to drill wells into geothermal reservoirs for power generation and heating, often encountering high temperatures.
- Mining Exploration: Utilized for drilling boreholes to retrieve core samples and evaluate mineral deposits.
- Deep Water Well Drilling: Required for constructing very deep water wells, especially in hard rock formations.
- Specialized Construction/Civil Engineering: Occasionally used for drilling large foundation piles or shafts.
- Carbon Capture & Storage (CCS): Employed in drilling injection wells for storing captured CO2 underground.
The performance reliability of Drilling Tubes is crucial for the economic and operational success of these subsurface endeavors.
.webp)
Drill Pipe Size Chart
This chart provides common API sizes for standard Drill Pipes & Tubes, including typical nominal weights (which usually account for standard tool joints) and common connection types.
| Pipe OD (inch) | Pipe OD (mm) | Nominal Weight Range (lb/ft) | Common API Tool Joint Connections (Examples) |
|---|---|---|---|
| 2 ⅜ | 60.3 | 4.85 - 6.65 | NC26 |
| 2 ⅞ | 73.0 | 6.85 - 10.40 | NC31, EU |
| 3 ½ | 88.9 | 9.50 - 15.50 | NC38, EU, IF |
| 4 | 101.6 | 11.85 - 14.00 | NC40 |
| 4 ½ | 114.3 | 13.75 - 20.00 | NC46, FH, IF |
| 5 | 127.0 | 16.25 - 25.60 | NC50, FH, IF |
| 5 ½ | 139.7 | 19.20 - 24.70 | NC50 (oversized), FH, IF |
| 6 ⅝ | 168.3 | 25.20 - 27.70 | 6 ⅝ FH, NC61 |
Disclaimer: Illustrative data. Weights are nominal and include tool joints. Refer to API standards/manufacturer data for specifics.
Certifications and Compliance
Due to the critical safety and operational demands, Drill Pipes & Tubes must strictly adhere to industry standards, verified through rigorous certification processes.
- API Specification 5DP: The benchmark global standard. Compliance ensures minimum requirements are met for materials, dimensions, properties, testing, and quality control.
- API Monogram: Use of the API Monogram signifies the manufacturer operates under a licensed quality system audited by API and produces conforming products. This is a key indicator of quality assurance.
- ISO 9001: Indicates the manufacturer employs a certified quality management system for consistent process control.
- Mill Test Certificates (MTCs): Essential documentation providing full traceability (serial/heat numbers) and confirming conformance to API 5DP. Includes actual chemical analysis, mechanical test results (yield, tensile, impact), NDE confirmation, heat treatment details, and hydrostatic test results.
- API Spec 7-1: Governs tool joints attached to the drill pipe.
USA Piping Solution prioritizes sourcing from API-licensed manufacturers and ensures comprehensive MTCs accompany all drill pipe products.
Why Choose USA Piping Solution for Drill Pipes?
Sourcing critical items like API Drill Pipe demands a supplier with industry insight and reliable capabilities. USA Piping Solution offers key advantages:
- Industry Focus: We understand the rigorous demands placed on drill string components in the Oil & Gas and related sectors.
- Quality Sourcing: We focus on facilitating access to drill pipe from reputable, API-licensed manufacturers committed to meeting stringent standards.
- Logistical Expertise: We manage the transportation and delivery of these specialized, heavy tubular goods effectively across the US.
- Technical Support: Our team can assist in navigating API specifications and understanding grade/connection options relative to application needs.
- Documentation Assurance: We ensure comprehensive Mill Test Certificates (MTCs) compliant with API standards are provided for quality verification and traceability.
Responsive Service: We prioritize prompt communication, accurate quotations, and efficient order management vital for time-sensitive drilling operations.
Related Products
Beyond standard drill pipe and HWDP, USA Piping Solution facilitates access to other essential tubulars for well construction and production:

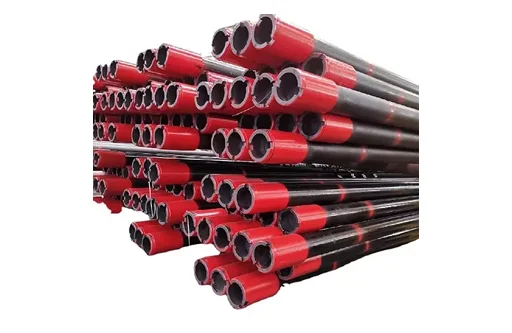

OCTG Casing & Tubing
Pipes used to line the borehole (Casing) and produce hydrocarbons (Tubing), supplied to API 5CT specifications.
API 5L Pipe
Used for constructing pipelines to transport oil, gas, and water.

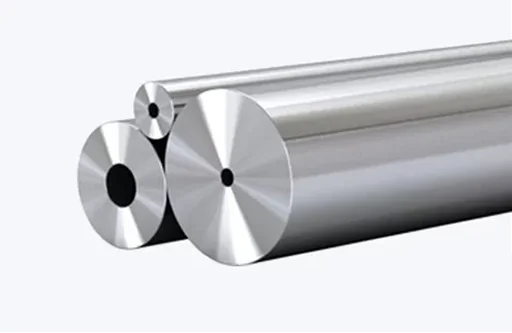

High Strength Mechanical Tubing (ASTM A519 Alloys)
Grades like 4140 used for manufacturing downhole tools and equipment components.
Our network supports a broad range of tubular requirements for the energy industry.
Final Call to Action
For reliable access and efficient delivery of high-quality Drill Pipes & Tubes meeting API standards, engage with USA Piping Solution. We specialize in sourcing and supplying critical API Drill Pipe and Heavy Weight Drill Pipe required for successful drilling programs. Ensure the integrity and performance of your drill string with certified materials from a dependable partner.
Contact USA Piping Solution today to discuss your specific Drill Pipes & Tubes needs (Grade, Size, Connection, Quantity) and receive a prompt, competitive quotation.
