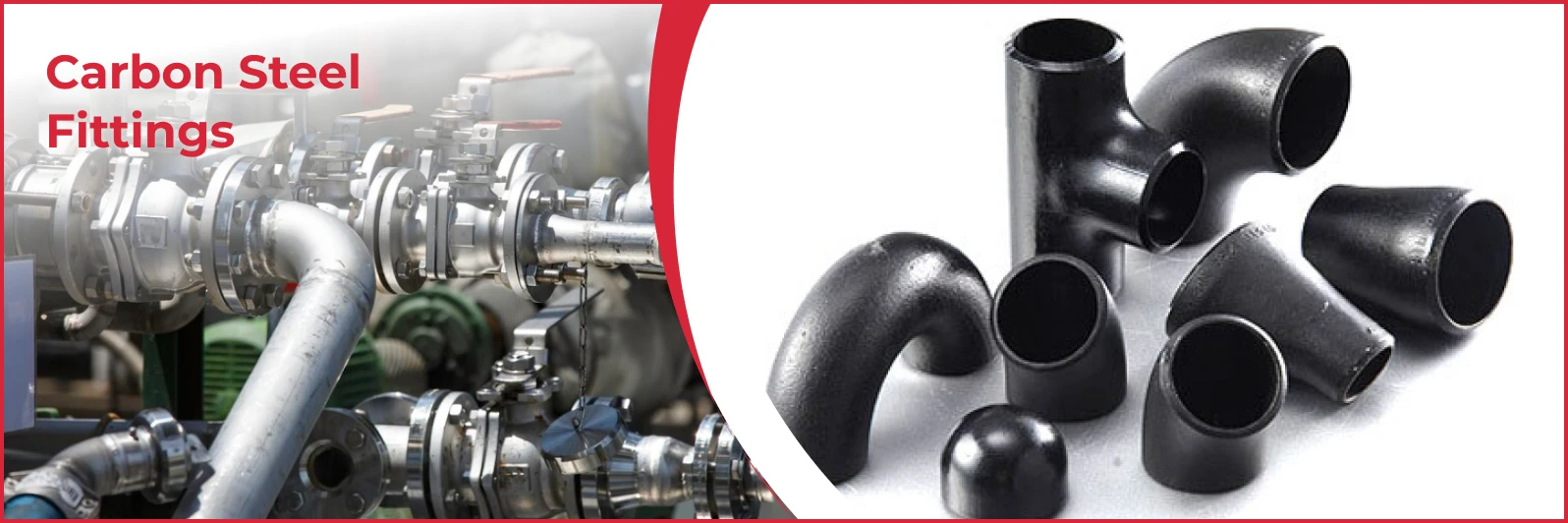

Premier Carbon Steel Fittings: Engineered and Supplied by USA Piping Solution

Industrial piping demands component reliability. USA Piping Solution, a leading manufacturer/supplier of high-caliber Carbon Steel Fittings, engineers solutions for diverse industrial challenges. We deliver assurance, precision, and dependability for critical fluid/gas transport. When strength and durability are vital, our broad Carbon Steel Fittings spectrum offers optimal solutions, backed by industry insight.

Unpacking Carbon Steel Fittings: Their Role and Significance

Carbon Steel Fittings (CS Pipe Fittings) are crucial links in piping networks, managing, diverting, or modifying flow. They join segments, adapt sizes, or enable branches and directional changes. Carbon steel's (iron/carbon alloy, ≤2.1% C) mechanical properties (strength, hardness, ductility) derive from carbon content and heat treatment.

Their suitability for high-pressure/temperature environments is key. Carbon steel's strength withstands significant pressures/loads, making Carbon Steel Fittings vital for steam lines, refinery piping, and power generation. It maintains integrity at high temperatures, ensuring safety and longevity.

Industries prefer carbon steel for:

• Strength & Toughness: Resists vibrations, shocks, fluctuations.
• Economy: Robust performance at lower cost than exotic alloys.
• Versatility & Weldability: Easily welded for strong, leak-proof joints.
• Availability: Common material, short lead times.
• Thermal Resistance: Good for moderate/high temperatures. Low Temperature Carbon Steel Fittings (LTCS) for colder needs.

Carbon Steel Fittings are foundational, chosen for performance, economy, and adaptability; integral to system safety, efficiency, and reliability.

Exploring the Spectrum: Types of Carbon Steel Pipe Fittings

USA Piping Solution offers an expansive inventory of Carbon Steel Fittings, including Carbon Steel Buttweld Fittings and forged options, for nearly any piping configuration.

Elbows (90°, 45°, LR/SR): Masterfully Changing Flow Direction

Carbon Steel Elbows alter pipeline course.

• Function: Redirect fluid/gas, navigate obstacles, adjust elevation.
• Types: 90° (sharp turn), 45° (gradual shift).
• Radius: Long Radius (LR) (1.5xNPS) for smoother flow, less pressure drop. Short Radius (SR) (1xNPS) for tight spaces.
• Applications: Process lines, oil/gas pipelines.

Tees (Equal, Reducing): Facilitating Precise Branch Connections

Carbon Steel Tees (3-way) create branches, combining/splitting flow.

• Types: Equal Tee (branch diameter matches main). Reducing Tee (branch smaller).
• Applications: Manifolds, headers, oil/gas gathering, water distribution.

Reducers (Concentric, Eccentric): Skillfully Adapting Pipe Diameters

Carbon Steel Reducers join differing diameter pipes, managing flow velocity/pressure.

• Types: Concentric (cone-shaped, for vertical lines). Eccentric (offset centerline, flat side prevents air/sediment traps in horizontal lines).
• Applications: Pump suction/discharge, equipment connections.

Caps: Ensuring Secure Line Termination

Carbon Steel Caps seal pipeline ends/outlets, terminating flow. Butt-welded for a robust seal.

• Applications: End of runs, headers, vessel openings.

Stub Ends & Nipples: Specialized Connectors

• Stub Ends: Short pipe (one flared lap end, one butt-weld end). Use with lap joint flanges for easy alignment/cost savings.
• Nipples: Short, usually male-threaded. Connect fittings/extend runs.
• Applications: Plumbing, instrumentation, valve connections.

Crosses & Couplings: Multi-Directional Flow and Linear Joining

• Crosses: Four-way fittings. Applications: fire sprinklers, specific manifolds.
• Couplings: Connect two same-diameter pipes. Types: Full, Half, Reducing. Applications: extending runs, repairs.

Correct selection and installation are fundamental. USA Piping Solution ensures all fittings meet high quality/dimensional standards.

Understanding Material Grades & Adherence to Industry Standards

Carbon Steel Fittings performance is tied to grades and standards. USA Piping Solution ensures all products conform to global specifications.

• ASTM A234 WPB: Common for butt-welding fittings (moderate/high-temp). WPB = Weldable, Pressure, Grade B. ASTM A234 WPB Fittings from killed steel.
• ASTM A420 WPL6 (LTCS): For low-temp service. WPL6 = Weldable, Pressure, Low Temp, Grade 6 (Charpy tested). For cryogenics.

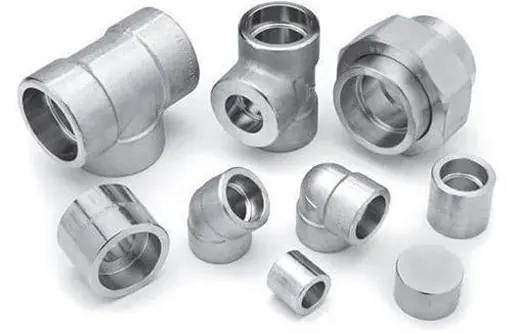

• ASTM A105 (Forged): Forged components (flanges, fittings) for ambient/higher-temp pressure systems. Refined grain gives superior strength.
• MSS SP-75: High-yield butt-welding fittings for high-pressure oil/gas transmission.
• ASME B16.9: Governs dimensions, tolerances for wrought Carbon Steel Buttweld Fittings (NPS ½ - 48), ensuring interchangeability.
• ASME B16.11: For forged fittings (socket-weld/threaded), typically ≤NPS 4, high-pressure/temp service.

Conformity ensures safety and quality. Our fittings meet or exceed these specifications.

Pressure Boundaries & Size Availability: Key Selection Criteria

Selecting Carbon Steel Fittings requires understanding pressure ratings and sizes.

• Pressure Classes (Forged Fittings - ASTM A105):
• Class 2000 (lower), 3000 (medium-high), 6000 (high), 9000 (very high pressure). Correlate to ASME B16.11 ratings.
• Wall Thickness (Schedules for Butt-Weld - A234 WPB, A420 WPL6): Determines pressure capability.
• SCH 10-30 (lighter), STD (Standard), XH (Extra Heavy), SCH 120-160, XXH (Double Extra Heavy). Match fitting schedule with pipe. Special walls available.
• Size Range: ½” NB to 72” NB. Butt-weld up to 48"/72" standard; larger custom. Forged ¼” to 4” NB.

Meticulous selection of ratings/sizes is critical. Our team can assist.

Where Performance Matters: Applications & Industries Served

The strength, durability, and cost-effectiveness of Carbon Steel Fittings make them vital across demanding industries. USA Piping Solution serves key sectors where piping integrity is non-negotiable:

• Oil & Gas (Upstream, Midstream, Downstream): Primary sector for CS Pipe Fittings. Gathering systems, transmission pipelines (MSS SP-75 often), refinery process piping. Handles high pressures/temperatures.
• Power Generation: Fossil fuel plants (steam lines, boiler feedwater - ASTM A234 WPB Fittings), nuclear (secondary systems), renewables.
• Refining Operations: Process units (crude distillation, cracking) use fittings for hydrocarbons, steam, chemicals at elevated temperatures/pressures.
• Shipbuilding & Marine Systems: Ballast, bilge, fuel oil, cooling systems. Carbon steel offers structural strength with coatings.
• Chemical Processing: Handling diverse chemicals where stainless steel isn't required/economical. LTCS Fittings for cryogenic processes.

USA Piping Solution understands each sector's unique challenges, providing fittings that meet or exceed industry requirements.

Our Commitment to Quality: Certifications & Rigorous Testing

At USA Piping Solution, quality assurance is fundamental. Our Carbon Steel Fittings, including ASTM A234 WPB and LTCS Fittings, undergo rigorous tests and have comprehensive certifications, ensuring compliance, traceability, and fitness for purpose.

• MTCs – EN 10204 3.1 / 3.2:
• 3.1 MTC: Manufacturer-issued, declares compliance, includes inspection results (chemical, mechanical). Validated by manufacturer's independent rep.
• 3.2 MTC: Higher assurance, validated by manufacturer’s rep AND purchaser’s rep/official inspector. For critical applications.
• Hydrostatic Testing: Raw material (pipe/forging stock) often tested.
• Positive Material Identification (PMI): Verifies alloy chemical composition (XRF, OES), ensuring correct grade.
• Non-Destructive Testing (NDT): Detects surface/internal flaws without damage: VT, MT, PT, UT, RT. Specific NDT depends on fitting type, standards, customer specs.
• ISO 9001:2015 Certified Manufacturer: Signifies commitment to quality management, customer satisfaction, continuous improvement.
• Third-Party Inspections (TPI): Facilitated with agencies like Lloyd's, BV, DNV, SGS for added verification.

Our robust testing ensures reliable, durable, fully documented Carbon Steel Fittings.

The USA Piping Solution Advantage: Why Partner With Us?

Choosing USA Piping Solution for Carbon Steel Fittings directly impacts project timelines, budgets, and operational reliability. We are a preferred partner through product excellence, customer-centric services, and quality commitment.

• Vast Inventory & Expedited Delivery: Substantial stock of standard fittings (ASTM A234 WPB, LTCS), various types/sizes for rapid response, minimizing lead times. Efficient logistics ensure prompt global delivery.
• Tailored Solutions: Custom Sizes & Fabrication: Capability for custom-sized CS Pipe Fittings and fabrication services for unique design needs (non-standard angles, special walls).
• Competitive Value & Global Reach: Competitive pricing without compromising quality. Established mill relationships and efficient operations pass cost benefits to clients. Robust global supply chain.
• Unwavering Quality Assurance & Documentation: Fittings from reputable, ISO-certified sources or produced under stringent QC. Supplied with MTCs (e.g., EN 10204 3.1) for traceability and compliance.

Partner with USA Piping Solution for trust, reliability, and superior product performance.

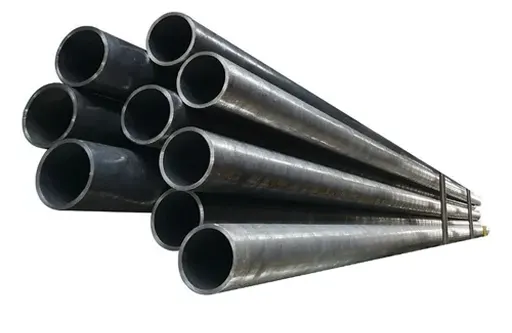

Complementary Piping Products for Integrated Solutions

USA Piping Solution offers related products for holistic piping solutions and streamlined procurement, ensuring material compatibility and consistent quality.

Your Next Step: Connect with USA Piping Solution

When your project demands reliable, durable Carbon Steel Fittings, trust USA Piping Solution. For exceptional performance, quality, and on-time delivery, our expertise and inventory (ASTM A234 WPB Fittings, Elbows, Reducers, Tees, LTCS Fittings) are ready.

Request Your Carbon Steel Fittings Quote Today!
