Running demanding industrial processes means every component matters, especially at connection points. The integrity of your fluid or gas systems relies heavily on the fittings that join pipes and tubes. Choosing wisely here isn't just good practice; it's essential for safety, efficiency, and preventing costly downtime. At USA Piping Solution, we specialize in providing high-quality Stainless Steel Pipe Fittings & Tube Fittings, engineered specifically for the tough realities of modern industry. We're focused on delivering parts that are not only durable and reliable but also integrate smoothly into your existing setups. Whether you need standard items shipped fast or custom-fabricated components for a unique challenge, USA Piping Solution is your resource for stainless steel connections you can trust.

Pipe Fittings vs. Tube Fittings - Key Differences to Know

You'll often hear these terms used together, but pipe fittings and tube fittings aren't quite the same. They differ mainly in how they're sized and the methods used to connect them. What they absolutely share is the frequent use of stainless steel. Why stainless? It's simple: exceptional corrosion resistance, dependable strength even at high or low temperatures, and a naturally clean surface make it invaluable for critical tasks.

Let's talk Pipe Fittings. Generally, you'll find these in systems where sizing follows Nominal Pipe Size (NPS) and a Schedule number (which relates to wall thickness). Think of robust, often rigid piping networks, perhaps carrying larger fluid volumes or operating under significant pressure. How do they connect?

• Butt Welding (BW): For the ultimate in strength and leak prevention, the pipe and fitting ends are carefully prepared and welded edge-to-edge. This is the method for critical high-pressure/high-temperature service.
• Socket Welding (SW): The pipe slots into a recess (a socket) on the fitting, and then a weld is made around the joint. This can make alignment a bit simpler than butt welding, while still providing a very strong connection.
• Threading: Fittings with standard tapered threads (like NPT) or straight threads (BSP) screw directly onto threaded pipe. It’s a common method for lower-pressure lines or where you might need the ability to take things apart later.

Now, onto Tube Fittings. These are designed for tubing, which is always measured by its exact outside diameter (OD) and specific wall thickness. Tubing itself often offers more flexibility, making it a good choice for instrument lines, hydraulic systems, or paths requiring tight bends. Stainless steel tube fittings are known for creating extremely reliable seals, often mechanically, without needing any welding heat:

• Compression Fittings: Probably the most familiar type. They use small rings, called ferrules (Stainless Steel Ferrule Fittings), which get compressed onto the tube when you tighten a nut. This action creates both a very strong mechanical grip and a dependable seal. Designs that use two ferrules (SS Compression Tube Fittings) are particularly valued for resisting vibration and providing an extra layer of sealing confidence.
• Flare Fittings: This method involves using a tool to flare the tube end outwards. A nut then presses this flared section tightly against a matching cone-shaped surface inside the fitting, creating the seal.

Choosing between these two main approaches – pipe fittings or tube fittings – really hinges on the details of your specific application. You have to weigh the pressures, temperatures, flow rates, whether you need flexibility, installation constraints, and maintenance plans. Our team at USA Piping Solution has seen countless applications and can help you sort through these factors to land on the best solution.

Specifications: Getting the Details Right

Precision is key. Matching the material grade, dimensions, and type to your needs ensures everything works together safely and reliably.

Material Grade Matters

The service life of a fitting is directly tied to choosing the right stainless steel grade for the environment it will face – think chemical contact, heat, cold, and pressure. We stock a variety of important grades:

• The 304/304L family is the workhorse, offering good performance in many general corrosive environments. Remember, the 'L' version has lower carbon, making it better for welding without compromising corrosion resistance later.
• When you need a step up in resistance, especially against chlorides or more aggressive industrial chemicals, 316/316L is often the answer, thanks to its molybdenum content. 316L is strongly recommended if welding is involved.
• For situations demanding high strength plus resistance to specific corrosion types like stress corrosion cracking, Duplex stainless steels (like the common 2205 grade) offer significant advantages, proving their worth in marine or processing industries.
• And for truly unique or severe conditions? We can supply fittings in specialty grades – perhaps 310 for high heat, 321/347 stabilized grades for sustained temperature exposure after welding, Super Duplex for extreme corrosion resistance, or alloys like Alloy 20 or 904L for specific chemical challenges.

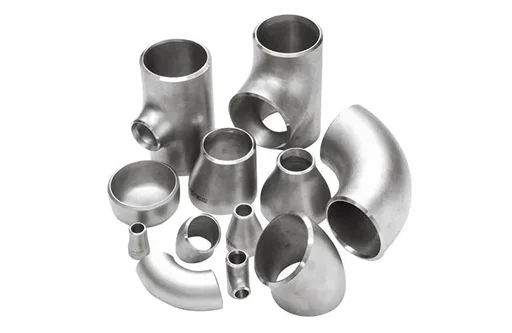

A Fitting for Every Need

Fluid systems require fittings in all shapes and sizes to direct flow correctly. We provide a full range:

• Need to turn a corner? SS Elbows (90° and 45° are most common) handle that.
• Branching off a line? That's a job for SS Tee Fittings (available in equal or reducing sizes).
• Connecting two pieces of pipe? You'll need a Stainless Steel Coupling.
• Stepping down or up in pipe size? Reducers (Concentric or Eccentric) manage the transition.
• Sealing off an end? Caps and Plugs do the trick.
• You'll also find Nipples for short connections, Unions that allow sections to be easily disconnected for maintenance, specialized Olets for making welded branch connections, plus a complete lineup of tube fitting configurations including Connectors, Unions, Elbows, Tees, and the essential SS Compression Tube Fittings which rely on Stainless Steel Ferrule Fittings for their seal.

The Importance of Industry Standards

Using fittings manufactured to recognized standards isn't just about checking a box. It's fundamental for ensuring safety, guaranteeing parts will interchange correctly, and achieving reliable, predictable performance in your system. USA Piping Solution is committed to meeting these critical benchmarks:

Key Standards We Adhere To

• Foundational specifications like ASTM A403 set the requirements for many common wrought stainless steel fittings (ASTM A403 Pipe Fittings).
• Dimensional standards like ASME B16.9 (for butt-weld fittings) and ASME B16.11 (for socket-weld/threaded) ensure proper fit-up.
• Critical systems often require compliance with ASME B31 piping codes (like B31.1 for Power or B31.3 for Process Industries).

We also meet relevant MSS standards and can supply materials that fulfill NACE requirements for sour service when your application demands it. Relying on standardized components significantly reduces risk.

Industries Where Our Fittings Excel

Thanks to stainless steel's resilience, our fittings are integral parts of systems across many demanding fields:

• Oil & Gas – from extraction to refining.
• Chemical & Petrochemical processing plants.
• Power Generation facilities.
• Food & Beverage production, where hygiene is key.
• Pharmaceuticals & Biotechnology, demanding purity.
• Water Treatment and desalination operations.
• Pulp & Paper manufacturing processes.
• Marine applications battling saltwater corrosion.
• Aerospace & Automotive systems needing reliability.
• Semiconductor fabrication requiring ultimate cleanliness.

Sizes, Finishes, and Connection Details

Beyond the basics, practical details influence your choice:

• Sizing: We cover the spectrum, from tiny fractional tube fittings up to large diameter pipe fittings (NPS 48" and beyond), including all the common schedule wall thicknesses.
• Surface Finish: While a standard industrial finish (Annealed & Pickled) works for many uses, smoother Bright Annealed or various Polished finishes are available when cleanliness or appearance is paramount.
• End Connections: How does it attach? We offer Butt Weld (BW), Socket Weld (SW), various Threaded options (NPT, BSP), Compression, Falared, and Plain Ends (PE) to match different assembly techniques.

Why Partner with USA Piping Solution?

Choosing your fittings supplier is an important decision. Here’s what we bring to the table:

• Dependable Quality: Quality isn't just inspected in; it's built-in, starting with certified raw materials.
• Inventory Depth: We stock a wide range of standard fittings, meaning faster access for you.
• Real-World Expertise: Our team understands the practicalities and can help you navigate choices.
• Custom Fabrication: When standard doesn't fit, we have the capability to make what you need.
• Clear Documentation: Full traceability and certification provide necessary assurance.
• Focus on Longevity: We supply fittings designed to last, reducing future headaches.
• Attentive Service: We support our products with responsive customer care.
• Solid Value: We aim to provide premium quality without excessive cost.

Our Approach to Quality Assurance

We stand behind our products. Our quality process includes:

• Operating under an ISO 9001:2015 certified management system.
• Ensuring complete material traceability, documented with MTCs.
• Using tools like PMI testing to verify alloy composition.
• Conducting careful dimensional and visual checks.
• Performing pressure tests when required to confirm integrity.
• Facilitating third-party inspections when projects demand it.

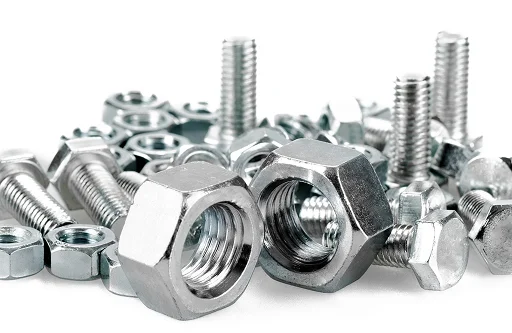

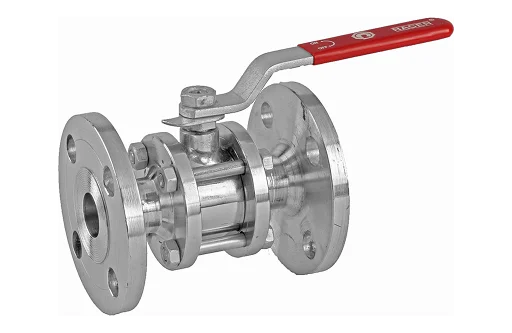

Consider Our Related Stainless Steel Products

Simplify your sourcing by getting related items from us too:

Let us know if we can assist with these materials for your project scope.

Let's Find Your Fitting Solution

When your operation needs reliable Stainless Steel Pipe Fittings & Tube Fittings, USA Piping Solution is ready to assist. We provide everything from common SS Elbows, SS Tee Fittings, and Stainless Steel Couplings to sophisticated SS Compression Tube Fittings, all meeting key standards like ASTM A403 Pipe Fittings.

Reach out to USA Piping Solution. Let's talk about your specific application. Request a quote, or connect with our technical team to ensure you get the right components for the job.

Request Your Stainless Steel Pipe & Tube Quote Today!
