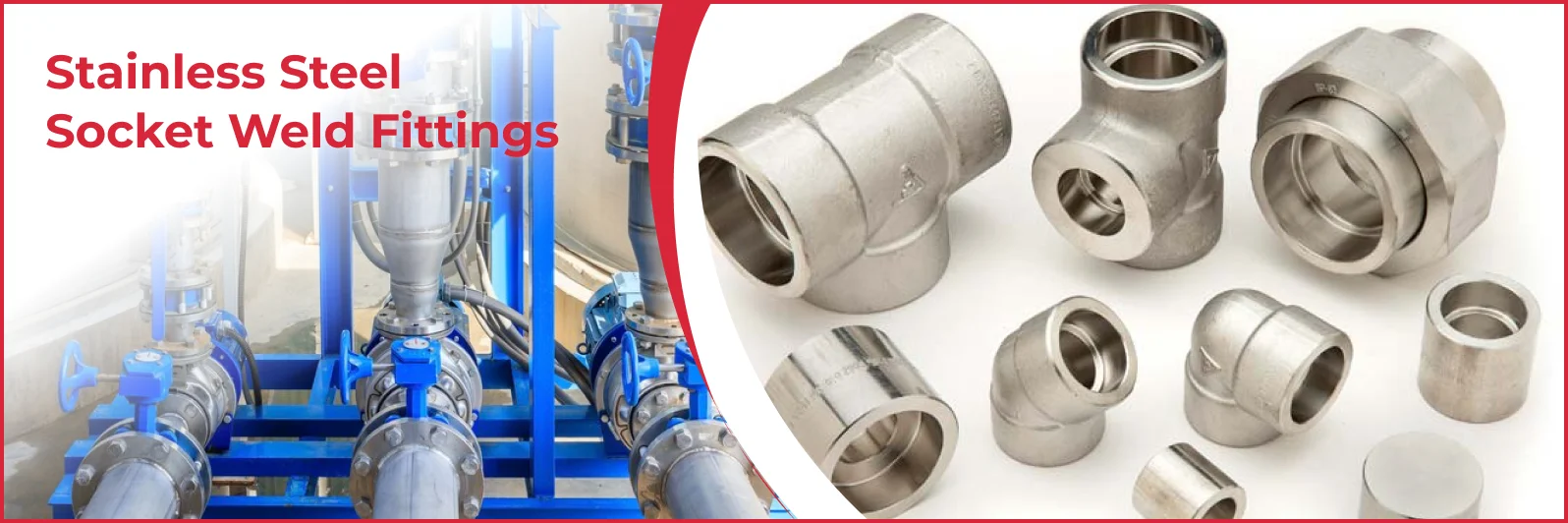

Stainless Steel Socket Weld Fittings Supplier USA

When your industrial systems demand secure, lasting connections, look to USA Piping Solution. We specialize in high-caliber Stainless Steel Socket Weld Fittings, engineered to perform reliably in tough environments. As a dedicated manufacturer and supplier, we provide solutions that consistently meet demanding international standards. You'll find our inventory covers a broad spectrum, including essential SS Socket Weld Elbows and SS SW Tees, available in numerous grades and pressure classes. For dependable high-pressure socket weld fittings that bring together top performance and real value, you can count on us.

What are Stainless Steel Socket Weld Fittings?

At their core, Stainless Steel Socket Weld Fittings (or SW fittings) are a specific type of pipe connector built for systems where the joint's strength and leak-proof nature are non-negotiable. They differ from butt weld fittings because instead of requiring beveled pipe ends, they have a built-in recessed area – the socket – ready to receive a plain-end pipe.

Making the connection is a well-established process. The pipe slides into the socket until it bottoms out, then it's pulled back just a fraction (around 1/16 inch or 1.5mm). This tiny gap is important; it allows for slight movement during temperature changes and prevents weld cracking. Then, a fillet weld is applied externally, sealing the point where the pipe meets the fitting's shoulder. The result is an exceptionally strong, leak-tight joint. This makes SW fittings a go-to choice for smaller pipe diameters (usually NPS 2 or less, though bigger ones exist) and critical applications involving high pressure, high temperature, or hazardous fluids where leakage simply isn't an option.

Opting for stainless steel, especially grades like 304/304L and 316/316L, offers clear benefits:

Excellent Corrosion Defense: Stainless steel holds up remarkably well against a wide range of corrosive agents, a must in chemical, marine, or processing plants.
Enduring Strength: These alloys keep their mechanical properties stable across varying temperatures, leading to a long service life.
Cleanliness Factor: While the socket design does create a small crevice (butt welds are preferred for ultra-pure applications), stainless steel itself is well-suited for many clean utility lines.

Compared with traditional threaded fittings, socket weld joints offer far superior leak resistance and stand up much better to system vibration. Butt weld fittings might provide the ultimate strength and the smoothest internal flow (and are often chosen for larger pipes or extreme conditions), but socket weld fittings simplify the alignment and welding steps. This often makes them a more practical and budget-friendly pick for many smaller, high-pressure pipelines.

Types of SS Socket Weld Fittings

To help you build virtually any piping configuration, USA Piping Solution stocks a complete lineup of Stainless Steel Socket Weld Fittings. Each fitting type has a distinct job to do within the system:

Socket Weld Elbows (90°, 45°)

Their Role: Used to change the direction of the pipe run. The common angles are 90 degrees for sharp turns and 45 degrees for more gradual bends.
Key Features: An SS Socket Weld Elbow has sockets at both ends, ready for pipe insertion. They're essential building blocks for routing fluids effectively, particularly in pressurized lines needing secure directional shifts.

Socket Weld Tees

Their Role: Create a 90-degree branch off the main pipeline, perfect for diverting flow or combining streams.
Key Features: An SS SW Tee provides three connection points (sockets). An "equal tee" has all three openings the same size. A "reducing tee" has a smaller diameter branch opening. These are vital for creating distribution headers or collection points.

Socket Weld Couplings

Their Role: Join two pieces of pipe end-to-end in a straight line.
Key Features: An SS SW Coupling is available in a few useful variations:

Full Coupling: Has sockets at both ends to connect two pipes of the same size.
Half Coupling: Features one socket end and one end that's plain or threaded. Useful for branching directly off equipment or larger pipes.
Reducing Coupling: Connects two pipes of different diameters, featuring appropriately sized sockets for a smooth transition.

Socket Weld Unions

Their Role: Provide a convenient way to break the line open without cutting the pipe, invaluable for maintenance or equipment swaps.
Key Features: An SS Socket Weld Union typically consists of three interlocked pieces. Two ends are prepared for welding to pipes, and a threaded nut draws them together, creating a seal that can be easily undone and re-tightened.

Socket Weld Crosses & Caps

Their Role:

Cross: Creates a four-way meeting point for pipes.
Cap: Seals off the end of a pipe run.

Key Features:

Crosses: Offer four socket connections from a central point, useful in some complex manifold designs.
Caps: Are simple fittings with one socket, designed to fit snugly over a pipe end for a permanent, reliable closure.

Specifications of Socket Weld Fittings

Getting the right fit and performance means adhering to established industry benchmarks. Every Stainless Steel Socket Weld Fitting from USA Piping Solution is made and tested according to key specifications.

ASTM A182 / ASME SA182

What it Covers: This is the foundational specification for forged fittings (including socket weld types), flanges, and valves made from alloy and stainless steels intended for higher temperature work.
Why it Matters: Following ASTM A182 ensures the starting material, the forging process, any necessary heat treatments, and the final mechanical strength are all up to par for demanding service. Specifying ASTM A182 F304/F316 SW Fittings directly references this quality standard.

Grades: SS 304, 304L, 316, 316L, 310, 321

The specific grade of stainless steel dictates how the fitting will resist corrosion and handle heat and stress. Common choices include:

SS 304/304L (e.g., ASTM A182 F304/F304L): Widely used austenitic grades known for good all-around corrosion resistance and ease of welding. The 'L' (low carbon) version offers better resistance to corrosion right after welding.
SS 316/316L (e.g., ASTM A182 F316/F316L): These grades include molybdenum, giving them a distinct edge over 304 in resisting chlorides and certain acids – great for coastal, marine, or chemical plant use. Again, 'L' grade is best for welded structures.
SS 310: High levels of chromium and nickel provide excellent stability and corrosion resistance at very high temperatures.
SS 321: Similar base to 304 but stabilized with titanium. This prevents chromium carbide formation during welding, maintaining corrosion resistance, especially with intermittent high-temperature exposure.

Class Ratings: 3000#, 6000#, 9000#

What it Covers: The pressure ratings and physical dimensions of socket weld fittings are laid out in ASME B16.11.
Why it Matters: This standard defines pressure classes: 3000, 6000, and 9000 (often shown as 3000#, etc.). These indicate the fitting's ability to handle pressure at different temperatures.

Class 3000: Common for standard industrial high-pressure lines (wall thickness similar to Sch 80 pipe).
Class 6000: Built for higher pressures (wall thickness closer to Sch 160 pipe).
Class 9000: Designed for extreme pressure applications (wall thickness like XXS pipe).

Simply put, a higher class number means a heavier, stronger fitting. Choosing the right class is vital for safety in High-Pressure Socket Weld Fittings systems. ASME B16.11 also locks in dimensions like socket depth, ensuring fittings fit correctly every time.

Chemical Composition and Mechanical Properties

Chemical Composition (Typical)

We strictly monitor the chemical makeup – the precise percentages of elements like chromium, nickel, carbon, and molybdenum – to match the specified grade (like 304L or 316L). This chemistry is key to the fitting's corrosion resistance and behavior in service. You'll find the exact analysis for each batch detailed on the Material Test Report (MTR) that accompanies the fittings.

Mechanical Properties

Our fittings consistently meet or surpass the required minimums for mechanical strength set by ASTM A182. This includes tensile strength (how much pull it can take), yield strength (the point of permanent bending), elongation (how much it can stretch), and hardness. This confirmation ensures the fittings can safely handle the pressures and loads within your system. These verified results are also documented on the MTR.

Applications and Industries Served

Combining high-pressure ratings, near-zero leak potential, and stainless steel's advantages makes Socket Weld Fittings indispensable in many industrial settings. USA Piping Solution is a key supplier to sectors where performance counts:

Oil & Gas: Used throughout refineries and processing facilities for smaller diameter lines handling corrosive materials or high pressures (think instrumentation lines, chemical feeds).
Chemical Plants: A reliable choice for safely moving aggressive chemicals where containment is critical. SS 316/316L are frequently specified.
Power Generation: Found in various utility and process lines within power plants (thermal, nuclear) managing steam, condensate, or chemicals under pressure. The strength of High-Pressure Socket Weld Fittings is essential here.
Petrochemical Production: Used in making plastics, fertilizers, and other derivatives, handling challenging fluids reliably.
Shipbuilding & Marine: SS 316/316L fittings resist saltwater corrosion effectively in onboard systems like hydraulic lines or fuel pipes.
Pulp & Paper Mills: Handle corrosive bleaching chemicals and process fluids.
Pharmaceuticals & Biotech: Typically used in plant utility systems (clean steam, compressed air) rather than lines in direct contact with the final product.
Food & Beverage: Similar utility applications as in pharma, often outside direct product zones.

Manufacturing Standards & Quality Control

At USA Piping Solution, rigorous manufacturing protocols and quality checks are standard practice. This ensures every Stainless Steel Socket Weld Fitting we supply is dependable.

Verified Materials: We start with high-quality raw stock meeting ASTM A182 specs, double-checking grade and composition with PMI testing and MTR reviews.
Strength through Forging: Fittings are typically forged, a process that aligns the metal's grain structure for superior strength and toughness.
Accurate Machining: Dimensions are precisely machined to meet ASME B16.11 tolerances, especially the critical socket measurements for a proper fit.
Optimizing Heat Treat: When beneficial for the grade (like solution annealing for austenitic steels), heat treatment enhances corrosion resistance and refines properties.
Multiple Quality Checks: Inspections happen throughout production – verifying dimensions, visually checking for any flaws, and performing NDT like liquid penetrant testing if required.
Permanent Identification: Each fitting is clearly marked per ASME B16.11, including our name, the material grade, pressure class, size, and a heat code tracing back to its origin.
Certified Documentation: We provide Material Test Reports (MTRs) to EN 10204 3.1 standards, giving you full traceability from the fitting back to its material source and test results.

Why Choose USA Piping Solution for SS Socket Weld Fittings?

Selecting USA Piping Solution as your source for Stainless Steel Socket Weld Fittings offers clear advantages for your operations:

Quality You Can Trust: Our primary focus is delivering fittings that meet or exceed strict ASTM and ASME standards for reliable service.
Inventory Depth: We stock a wide array of types (SS Socket Weld Elbows, SS SW Tees, SS SW Couplings, SS Socket Weld Unions), sizes, pressure classes (3000# through 9000#), and common grades (ASTM A182 F304/F316 SW Fittings), ready for timely shipment.
Knowledgeable Support: Our team understands the technical details and can help you select the right fittings for your specific conditions.
Built for Pressure: Our products are designed and proven in demanding high-pressure socket weld fittings applications.
Guaranteed Traceability: Full MTR documentation provides the verification and compliance records you need.
Service Focused on You: We aim for quick responses, clear communication, and efficient order handling to keep your projects on track.
Real Value: Get top-quality, fully compliant fittings at competitive prices.

Final Call to Action

For top-tier Stainless Steel Socket Weld Fittings manufactured to exacting standards, make USA Piping Solution your first call. From standard SS Socket Weld Elbows, SS SW Tees, SS SW Couplings, and SS Socket Weld Unions to specialized items in grades like ASTM A182 F304/F316 SW Fittings, we stock the components needed for both standard and challenging high-pressure socket weld fittings services.

Secure the performance and longevity of your critical piping systems. Reach out to our experienced sales team today. We're ready to discuss your requirements, provide technical details, or prepare a competitive quote for the Stainless Steel Socket Weld Fittings you need.
