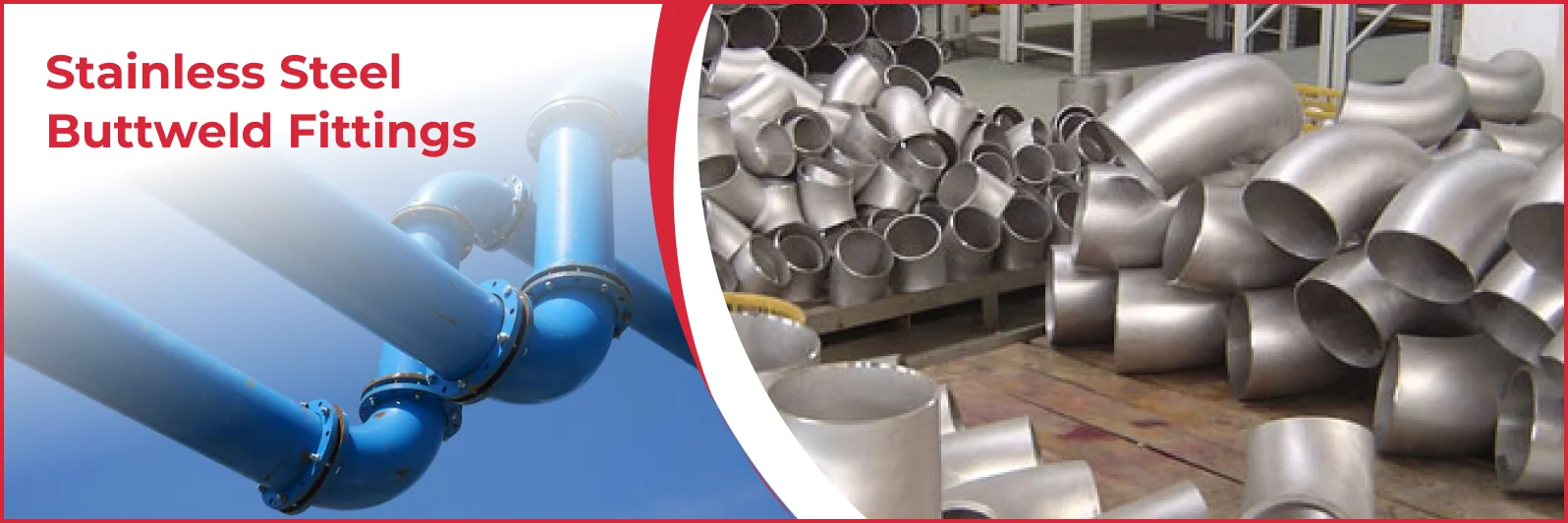

Stainless Steel Buttweld Fittings Manufacturer & Supplier - USA Piping Solution

USA Piping Solution is your trusted source for high-performance Stainless Steel Buttweld Fittings, critical for constructing durable and efficient piping systems. Designed to be welded directly to pipes, these fittings create a continuous, exceptionally strong, and inherently leak-proof connection. This method is preferred for demanding applications involving high pressure, temperature, or corrosive fluids. We offer a comprehensive range of stainless steel buttweld fittings, manufactured to stringent international standards, ensuring reliability for critical infrastructure across diverse industries. Partner with USA Piping Solution for quality components you can depend on.

What are Stainless Steel Buttweld Fittings?

Stainless Steel Buttweld Fittings are components made from wrought stainless steel (pipe, plate, forgings) engineered for joining pipelines via butt welding. Their beveled ends allow for a full penetration weld, effectively making the fitting part of the pipe run. Key advantages include:

Leak-Proof Seal: The solid weld eliminates potential leak paths common in mechanical joints.

Superior Strength: The joint matches the pipe's strength, handling significant operational stress.

Optimized Flow: Smooth interiors and gradual transitions (like in SS Elbows and SS Reducers) minimize pressure drop and turbulence.

Durability: Combines stainless steel's corrosion resistance with the weld's robustness for long service life.

These fittings come in various shapes to redirect flow, branch lines, or change pipe sizes. USA Piping Solution provides both Stainless Steel Seamless Fittings for maximum integrity and quality welded fittings (WP-W/WP-WX) for versatile solutions.

Types of Stainless Steel Buttweld Fittings

Our inventory covers essential stainless steel buttweld fitting types:

Elbows (90°, 45°, Long Radius, Short Radius)

SS Elbows change flow direction. Standard angles are 90° (SS 90 Degree Elbow) and 45°.

Long Radius (LR) (1.5 x NPS radius) offer smoother flow, the standard choice.

Short Radius (SR) (1.0 x NPS radius) are used in tight spaces.

Tees (Equal, Reducing)

An SS Tee creates a 90-degree branch.

Equal Tee: All three outlets are the same size.

Reducing Tee: The branch outlet is smaller than the run outlets, combining branching and reducing functions.

Reducers (Concentric, Eccentric)

An SS Reducer joins pipes of different diameters.

Concentric: Cone-shaped, same centerline; typical for vertical lines.

Eccentric: Offset centerline, one flat side; used in horizontal lines to prevent air/sediment traps.

Caps, Stub Ends, Crosses, Bends

Caps: Seal the end of a pipe run.

SS Stub Ends: Used with Lap Joint Flanges for easier bolt alignment; available in long (MSS Type A) and short (ASA Type B) patterns.

Crosses: Four-way intersections, less common than tees.

Bends: Similar to elbows but with larger radii (3D, 5D, etc.), often custom, for gradual turns minimizing friction.

Specifications of SS Buttweld Fittings

Adherence to specifications ensures safety and performance. USA Piping Solution fittings meet key industry standards:

ASTM A403 / ASME SA403

This is the primary standard for wrought austenitic stainless steel fittings. ASTM A403 Fittings cover material composition, manufacturing methods (WP-S, WP-W, WP-WX), heat treatment, mechanical properties, testing, dimensions (often per ASME B16.9), and marking.

Grades: SS 304, 304L, 316, 316L, 310, 321, 904L

Grade selection depends on service conditions. Common grades include:

• 304/304L: General purpose, good corrosion resistance; 304L preferred for welding.
• 316/316L: Enhanced chloride/pitting resistance (molybdenum); 316L ideal for welding in corrosive environments.
• 310/310S: Excellent high-temperature oxidation resistance.
• 321/347: Stabilized grades for high-temperature service, resisting sensitization.
• 904L: High alloy for severe corrosion resistance (e.g., sulfuric acid).

Sizes & Thicknesses (SCH 10 to SCH 160)

Fittings match standard pipe sizes (NPS 1/2" - 48"+). Wall thickness is designated by schedule:

• SCH 5S, 10S (Thin wall)
• SCH 40S (Standard)
• SCH 80S (Extra Strong)
• SCH 160, XXS (Very high pressure)

Applications and Industries Served

Stainless Steel Buttweld Fittings are vital in:

• Oil & Gas (Upstream, Midstream, Downstream)
• Petrochemical & Chemical Processing
• Power Generation (Fossil, Nuclear, Renewables)
• Water Treatment & Desalination
• Food & Beverage Processing
• Pharmaceutical & Biotechnology
• Pulp & Paper Manufacturing
• Mining & Minerals Processing
• Aerospace & Defense

Manufacturing Process & Compliance Standards

Quality fittings result from controlled processes:

• Certified Material: Starting with conforming raw stock.
• Forming: Using methods like mandrel bending (elbows), extrusion (tees), or drawing (caps, reducers).
• Welding (if applicable): Precision welding for WP-W/WP-WX grades, often with NDE.
• Machining: Beveling ends (ASME B16.25) and ensuring dimensional accuracy.
• Heat Treatment: Solution annealing restores properties and corrosion resistance.
• Cleaning/Finishing: Pickling and passivation enhance surface quality.
• Inspection & Testing: Dimensional, visual, mechanical, chemical checks per standards.
• Marking: Clear identification per ASTM A403.

Key Compliance Standards: ASME B16.9 (Dimensions), ASME B16.25 (Weld Ends), MSS-SP-43 (Light Wall), ASTM A403 (Material/Manufacture).

SS Buttweld Fittings Size Chart

Dimensions for Stainless Steel Buttweld Fittings are standardized by ASME B16.9. This specification provides detailed tables for center-to-face (Elbows), center-to-end (Tees), and length (Reducers, Caps, Stub Ends) measurements for all standard sizes and types. USA Piping Solution ensures all fittings comply with these dimensional tolerances. For specific dimensions needed for your design, please consult ASME B16.9 or contact our team.

Certifications and Quality Assurance

Quality is proven, not just claimed. USA Piping Solution provides:

• Full Traceability: Fittings traced back to the mill heat number.
• Mill Test Certificates (MTC): Provided per EN 10204 3.1, verifying chemical and mechanical properties.
• Standard Compliance: Strict adherence to ASTM, ASME, and MSS standards.
• Third-Party Inspection (TPI): Facilitated upon request for extra verification.
• Internal Checks: Rigorous visual and dimensional inspection before shipment.

Why Choose USA Piping Solution for Buttweld Fittings?

Partner with USA Piping Solution for:

• Extensive Stock: Quick access to common grades, types (SS Elbow, SS Tee, SS Reducer), sizes, and schedules.
• Verified Quality: Fittings meet ASTM A403 Fittings standards, backed by MTCs.
• Technical Expertise: Knowledgeable support to help select the right fitting.
• Reliable Delivery: Efficient logistics for on-time delivery, globally.
• Customer Focus: Tailored service for standard and custom needs.
• Competitive Value: High-quality fittings at fair market prices.

Related Products

We also supply a full range of piping components:

Let's Find Your Fitting Solution

Ensure the integrity of your piping systems with premium Stainless Steel Buttweld Fittings from USA Piping Solution. Our commitment to quality (ASTM A403 Fittings) and extensive inventory ensures you get the right parts, on time.

Secure your SS Elbows, SS Tees, SS Reducers, and more.

Contact USA Piping Solution today!

Request a Quote: Use our online form or email your RFQ.

Discuss Your Needs: Call our expert sales team.

Check Stock: Inquire about immediate availability.

Let USA Piping Solution be your trusted source for stainless steel piping components.

Request Your Stainless Steel Buttweld Fittings Quote Today!
