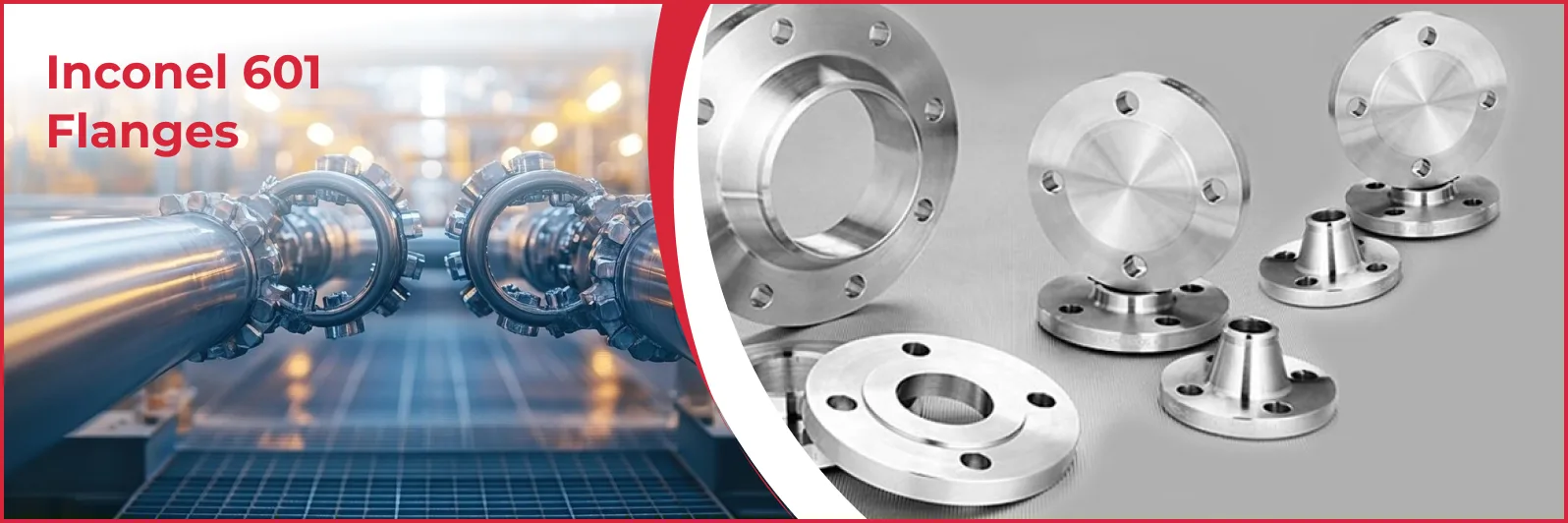

Inconel 601 Flanges Manufacturer & Supplier - USA Piping Solution

Industrial processes often push materials to their breaking point. When you face extreme heat and aggressive corrosion, you need components that truly perform. At USA Piping Solution, we craft Inconel 601 Flanges designed for exactly these challenges. These are more than just parts; they are critical solutions. Our focus is clear: to provide Alloy 601 Flanges that meet stringent international standards. We aim to ensure your piping systems operate reliably for the long haul.

What are Inconel 601 Flanges?

Why do engineers specify Inconel 601 Flanges for tough jobs? The answer lies in the material: UNS N06601, a nickel-chromium alloy. You might also know it as Werkstoff Nr. 2.4851. This alloy offers exceptional resistance to high-temperature oxidation. Think about it – structural integrity even at 1250°C (2280°F). That's a serious performance.

But Inconel 601 offers more. It stands up well to aqueous corrosion. It resists carburization and fights sulfidation. This makes these flanges vital in demanding thermal and chemical processing plants. How does it achieve this? Through a carefully balanced chemistry. High nickel (58-63%) and chromium (21-25%) are key. A crucial aluminum addition (1.0-1.7%) completes the picture. This team forms a remarkably tough, protective oxide layer. This layer is the flange's shield. It’s why these High Temperature Flanges are a smart investment. They protect equipment, extend service life, and cut down on costly maintenance.

Types of Inconel 601 Flanges Available

No two industrial challenges are the same. That's why USA Piping Solution provides a full range of Inconel 601 Flanges. Each type is engineered with specific connection needs and operational stresses in mind:

Weld Neck Flanges (WNRF)

An Inconel 601 Weld Neck Flange has a distinct long, tapered hub. This design provides superior reinforcement. It transfers operational stresses from the flange to the pipe via a strong butt-weld. This makes it the top choice for high-pressure, high-temperature work. It's also ideal for critical fluid containment. The inherent toughness of Inconel 601 ensures these flanges perform reliably, even in the harshest thermal settings.

Slip-On Flanges (SORF)

For easier installation, consider Inconel 601 Slip-On Flanges. They slide over the pipe end. Two fillet welds, inside and out, secure them. They are a practical, often more economical, choice for lower-pressure systems. This is true when the ultimate strength of a weld neck isn't the primary concern. You still get the full benefit of Inconel 601’s excellent corrosion and heat resistance.

Blind Flanges (BLRF)

Inconel 601 Blind Flanges are solid discs. Their job is simple: to securely seal the end of a pipeline. They also cap valves or vessel openings. This design allows easy access for system inspection or maintenance. Because they're Inconel 601, these flanges maintain a dependable, leak-tight seal. They do this even under significant pressure and temperature.

Lap Joint Flanges

Inconel 601 Lap Joint Flanges offer a smart, two-part design. They work with a stub end. The flange itself isn't welded to the pipe. Instead, it rotates freely around the stub end. This greatly simplifies bolt hole alignment. It's a real advantage for systems needing frequent dismantling. The Inconel 601 stub end ensures material integrity where it matters most – at the wetted surface.

Threaded Flanges

With a precise internal thread, Inconel 601 Threaded Flanges create a strong mechanical joint with threaded pipes. They are useful in low-pressure applications. They also suit areas where welding is impractical or not allowed. The Inconel 601 material ensures these non-welded connections remain durable in demanding service.

Socket Weld Flanges

These flanges have a recessed shoulder, or socket. This socket accepts the pipe end. An external fillet weld then secures the connection. Inconel 601 Socket Weld Flanges are an excellent choice for smaller, high-pressure lines. They consistently form a robust, leak-resistant joint.

RTJ and Custom Machined Flanges

When conditions are extreme – high pressures, searing temperatures – Inconel 601 Ring Type Joint (RTJ) Flanges are often the answer. They feature a precisely engineered groove. This groove holds a metallic ring gasket. When bolted, this creates an exceptionally tight, reliable metal-to-metal seal. Beyond standard designs, USA Piping Solution offers advanced custom machining. We can produce Custom Machined Flanges to your exact drawings and project specifications.

Specifications & Standards

We build every Inconel 601 Flange to meet globally recognized specifications. This commitment ensures the quality and compatibility your projects need:

• Material Standard: We follow ASTM B564 / ASME SB564.

• Alloy Identification: UNS N06601; also Werkstoff Nr. 2.4851.

• Dimensional Accuracy: We adhere to ANSI/ASME B16.5 (for ½” to 24” NB), ASME B16.47 Series A & B (for ≥26” NB), plus relevant BS 4504, EN 1092-1, and DIN standards.

• Size Range: Standard production covers ½” NB to 24” NB. We can also craft larger, custom sizes.

• Pressure Ratings: Engineered for ASME Classes 150# to 2500#. Also available in PN ratings from PN6 to PN100.

This strict adherence means our UNS N06601 Flanges integrate smoothly and perform reliably worldwide.

Chemical Composition & Mechanical Properties

The impressive performance of Inconel 601 Flanges comes from a precise chemical composition. This results in excellent mechanical strengths:

Core Chemistry (Typical Inconel 601):

Element	Content (%)
Nickel (Ni)	58.0 – 63.0
Chromium (Cr)	21.0 – 25.0
Iron (Fe)	Balance
Aluminum (Al)	1.0 – 1.7
Carbon (C)	0.10 max

This specific blend gives Inconel 601 its power. High nickel and chromium, with that key aluminum addition, deliver superior oxidation resistance. This is especially true under thermal cycling. It also strongly resists carburization and sulfidation.

Performance Metrics (Typical Annealed Values):

Property	Value (Metric)
Tensile Strength	550 – 690 MPa
Yield Strength (0.2% offset)	205 – 345 MPa
Elongation	30 – 55%
Density	8.11 g/cm³
Melting Range	1357 – 1411 °C

These figures, especially how well the alloy retains strength at high temperatures, show why engineers trust Alloy 601 Flanges for tough conditions.

Applications & Industries Served

Where do Inconel 601 Flanges make a critical difference? You'll find them in industries where conditions are anything but mild:

• Thermal Processing & Heat Treatment: Workhorses in industrial furnaces. They form parts like muffles, radiant tubes, and material handling baskets.
• Chemical & Petrochemical: Essential for process piping, reactor internals, and burner assemblies. These face corrosive media at high heat.
• Power Generation: Deployed in gas turbine hot sections and as superheater tube supports.
• Aerospace & Aviation: Used in demanding jet engine exhaust systems and afterburner parts.
• Pollution Control & Waste Management: Critical for components in incinerators and thermal oxidizers. These endure aggressive flue gases.
• Industrial Heating: Form durable heating elements and protective thermocouple sheaths.

Their consistent performance directly improves operational safety and equipment longevity.

Certifications & Testing

At USA Piping Solution, quality isn't just a claim. It's proven through comprehensive certifications and meticulous testing for every Inconel 601 Flange:

• Quality Management: Our manufacturing follows an ISO 9001:2015 certified system.
• Documented Proof: Material Test Certificates (MTC) to EN 10204 3.1 are standard. We can arrange EN 10204 3.2 certification if needed.
• Rigorous Testing:
• Positive Material Identification (PMI): We verify the alloy grade.
• Mechanical Testing: Tensile and hardness tests confirm properties.
• Dimensional Inspection: Critical dimensions are checked against standards.
• Visual Inspection: Experienced eyes ensure flawless workmanship.
• Non-Destructive Testing (NDT): We can perform PT, UT, or RT as your project requires.
• Third-Party Inspection (TPI): We welcome and facilitate inspections by accredited agencies.

These steps are our promise: every ASTM B564 Inconel 601 Flange meets the highest industry standards for quality and reliability.

Why Choose USA Piping Solution?

Choosing USA Piping Solution for your Inconel 601 Flanges means choosing a partner. We are committed to your project's success. Here’s how we deliver:

• Unwavering Quality: We strictly follow international standards. This guarantees dependable performance.
• Deep Expertise: Our team has practical knowledge of Nickel Alloy Flanges. We help you find the best solution.
• Custom Solutions: Have a unique challenge? Our advanced machining and skilled engineers can create bespoke Inconel 601 flanges.
• Fair Value: We offer competitive pricing for premium products. You get excellent value without compromising quality.
• Global Reach, On Time: Our efficient logistics ensure timely delivery worldwide. Products are secured in export-ready packaging.
• Any Scale, Any Time: Whether small or large orders, our inventory and production capacity meet your needs.
• Full Transparency: Complete documentation, including MTCs, provides peace of mind.
• Your Success, Our Focus: We aim to be more than a supplier. We are your proactive partner.

Experience the confidence of working with a dedicated team. Trust USA Piping Solution with your Inconel 601 Flange needs.

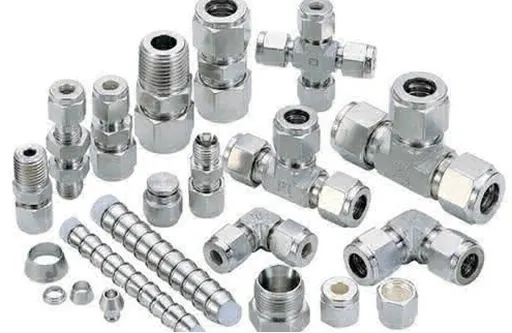

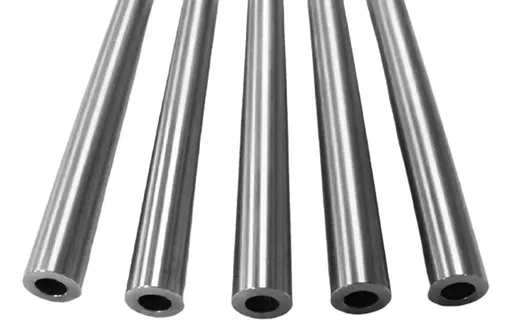

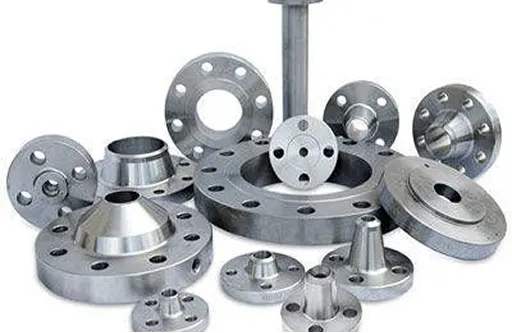

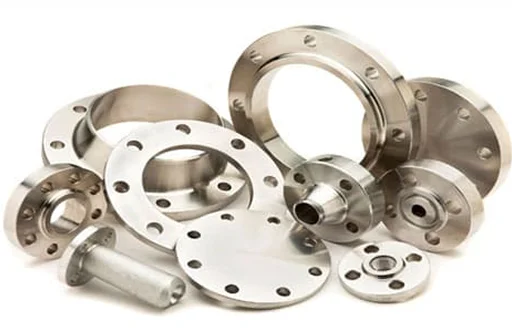

Related Products

USA Piping Solution offers a complete range of related products. These are all made to the same high standards as our Inconel 601 Flanges:

Let us be your single source for high-nickel alloy piping materials. This simplifies procurement and ensures consistent quality.

Final Call to Action

Your search for superior Inconel 601 Flanges ends here. USA Piping Solution provides components engineered to conquer extreme heat and corrosion. We are your expert source for ASTM B564 Inconel 601 Flanges. We offer a full range of types, sizes, and custom solutions.

Request Your Inconel 601 Flanges Quote Today!
