At USA Piping Solution, we're a leading source for high-performance Inconel 600 Pipes & Tubes right here in the United States. We focus on manufacturing and supplying robust Nickel Alloy 600 piping solutions built to handle some of the toughest industrial environments out there. Known for standing up exceptionally well to extreme heat and corrosive elements, Inconel 600 is a go-to material in many critical fields. Whether your project involves soaring temperatures, cryogenic conditions, or harsh chemicals, our wide selection of seamless and welded Inconel 600 pipes and tubes delivers the reliability and long service life your operations depend on. When you work with USA Piping Solution, you get top quality, solid technical know-how, and solutions designed to fit your exact needs.

What are Inconel 600 Pipes & Tubes?

So, what exactly is Inconel 600? You might see it listed as UNS N06600 or Werkstoff Nr. 2.4816 – it's all the same versatile nickel-chromium alloy. What makes it special is its excellent combination of strength at high temperatures and resistance to corrosion. The secret sauce is its high nickel content (usually 72% or more), which does a great job fighting off chloride-ion stress corrosion cracking and holds up well even when conditions aren't oxidizing. Add in the chromium, and you get solid resistance against sulfur compounds and various oxidizing attacks, even when things get hot or the solutions are corrosive.

Essentially, Nickel Alloy 600 Pipes & Tubes are just pipes and tubes made from this tough alloy. They're designed to move fluids or gases, or even act as structural components, in places where ordinary materials would quickly fail. Here’s what makes them stand out:

• Handles the Heat: Works reliably day-in and day-out at temperatures reaching up to about 2000°F (1093°C). It resists oxidizing and carburizing well at these levels.
• Fights Corrosion: Shows impressive resistance against a whole host of corrosive substances – think organic and inorganic compounds, alkaline solutions, and even dry gases like chlorine at moderate temperatures.
• Good for Cryogenics: Doesn't become brittle in the cold. It keeps its strength and ductility, making it useful for very low-temperature work.
• Easy to Work With: You can form, machine, and weld Inconel 600 using standard shop practices. It gets harder and stronger through cold working, not heat treatment.
• Not Magnetic: Generally, Inconel 600 won't stick to a magnet.

Because of these inherent strengths, engineers often turn to Inconel 600 Pipes & Tubes when they need components that will last and stay reliable under really demanding conditions. It nicely fills the gap between standard stainless steels and more expensive, specialized superalloys.

Inconel 600 Pipes & Tubes Specifications

Making sure you get consistent quality and performance is key. That's why, at USA Piping Solution, the Inconel 600 pipes and tubes we supply meet strict international standards. We ensure our products align with the specific requirements of your application.

Technical Specifications

Here’s a rundown of the common specs we work with:

• Key Standards:
• ASTM B167 (for Seamless Pipe and Tube)
• ASTM B163 (specifically for Seamless Condenser and Heat-Exchanger Tubes)
• ASTM B517 (for Welded Pipe)
• ASTM B516 (for Welded Tube)
• ASME SB-167, SB-163, SB-517, SB-516 (Boiler and Pressure Vessel Code versions)
• May also meet elements of ASME SB-775, SB-829, SB-725
• UNS Designation: N06600
• European Equivalent: Werkstoff Nr. 2.4816
• Available Types:
• Seamless: Made without any welds by piercing and drawing solid metal. This gives them a uniform structure and makes them great for high-pressure jobs. Often chosen for critical systems. Look for Inconel 600 Seamless Tubes for these needs.
• Welded: Created by forming flat strips or plates into a pipe shape and welding the seam (using methods like ERW, EFW, or Laser Welding). Often a more budget-friendly option for less critical or structural uses. Includes Inconel 600 Welded Tubes and Pipes.
• Fabricated (Built-up from plate, usually for large diameters)
• LSAW (Longitudinal Submerged Arc Welded) - another method for larger pipes.
• Common Forms:
• Standard Round Pipes & Tubes
• Square & Rectangular Tubing (often for structures)
• Hydraulic Tubing
• Heat Exchanger & Condenser Tubes
• Instrumentation Tubing (smaller diameters)
• Hexagonal & Bush Hex Shapes (for specific fittings)
• End Finishes:
• Plain Ends (PE) - cut square
• Beveled Ends (BE) - ready for welding
• Threaded Ends (like NPT or BSPT)
• Typical Lengths:
• Single Random Length (SRL): Usually around 18-22 feet.
• Double Random Length (DRL): Generally about 38-44 feet.
• Cut-to-Length: We can cut to the exact lengths your project requires.
• Size Ranges:
• Nominal Pipe Size (NPS): We stock common sizes from 1/8" up to 24", and can source larger fabricated pipes.
• Tube Outside Diameter (OD): From tiny fractional sizes (like 1/8") up to several inches.
• Wall Thickness: Available in standard pipe schedules (Sch 5, 10, 40S, 80S, 160, XXS, etc.) and specific wall thicknesses (in BWG or inches/mm) for tubing.

If you have specific requirements not listed here, just ask! Our technical sales team is ready to help.

Chemical Composition and Mechanical Properties

The performance of Inconel 600 really comes down to its specific blend of elements. Knowing its chemical makeup and the resulting physical strength helps ensure it's the right pick for the job.

Chemical Composition (Typical)

Here's what you'll typically find inside Inconel 600 (UNS N06600):

Element	Content (%)	Why it's Important
Nickel (Ni)	72.0 min	The main ingredient; key for corrosion resistance, high-temp strength, toughness
Chromium (Cr)	14.0 - 17.0	Boosts resistance to oxidation and high-temp attack, helps against sulfides
Iron (Fe)	6.0 - 10.0	Adds strength and helps with manufacturing
Carbon (C)	0.15 max	Influences strength; controlled to manage carbides
Manganese (Mn)	1.0 max	Helps remove oxygen during melting, improves workability
Silicon (Si)	0.5 max	Adds resistance to oxidation and carburization
Copper (Cu)	0.5 max	Usually just a trace element, kept low
Sulfur (S)	0.015 max	An impurity – kept extremely low to avoid brittleness

Keep in mind: These are typical ranges. The exact amounts can vary slightly between batches but will always meet the official ASTM/ASME standards.

Mechanical Properties

Here are the typical physical characteristics of Inconel 600 when it's in the annealed (softened) state at room temperature:

Property	Typical Value (Imperial)	Typical Value (Metric)	What it Means
Density	0.306 lb/in³	8.47 g/cm³	How heavy it is
Melting Point	Around 2580 °F	Around 1413 °C	It melts over a range (2470-2580°F)
Tensile Strength (Ultimate)	80,000 - 100,000 psi min	550 - 690 MPa min	How much pull it takes to break it
Yield Strength (0.2% Offset)	35,000 - 50,000 psi min	240 - 345 MPa min	How much pull before it permanently stretches
Elongation in 2 inches	30 - 45 % min	30 - 45 % min	How much it can stretch before breaking (ductility)
Modulus of Elasticity	Approx. 30 x 10⁶ psi	Approx. 207 GPa	Its stiffness
Hardness (Rockwell B)	Around 65 - 85 HRB		Its resistance to indentation (annealed)

Important Note: These are typical values for guidance. Cold working can significantly increase strength and hardness. Always refer to the specific Material Test Certificate (MTC) for guaranteed minimum properties for your order.

Types and Variations of Inconel 600 Pipes & Tubes

To meet different engineering challenges, USA Piping Solution provides Inconel 600 in several key forms:

1. Inconel 600 Seamless Pipes & Tubes (Meeting ASTM B167 / B163):
• How they're made: These start as solid metal billets that get pierced and then drawn through dies to get the final size. There's no weld seam involved.
• Why choose them: They offer the best pressure resistance, a very uniform structure, and a smooth finish. Because there's no weld, they can sometimes offer slightly better corrosion performance in very aggressive environments. They are the top choice for high-pressure, high-temperature systems like heat exchangers, critical pipelines, and hydraulic systems. You'll often see Inconel 600 Seamless Tubes specified for precision work.
2. Inconel 600 Welded Pipes & Tubes (Meeting ASTM B517 / B516):
• How they're made: These start as flat strips or plates of Inconel 600. They're rolled into shape, and the edges are joined together using welding techniques like ERW (Electric Resistance Welding) or EFW (Electric Fusion Welding). The weld area is often treated afterward to ensure good properties.
• Why choose them: Welded products are often more economical, especially in larger sizes or longer lengths. They work well for many structural uses, fluid transport at lower-to-medium pressures, and general corrosion resistance where the integrity of a quality weld meets the design needs. Inconel 600 Welded Tubes strike a good balance between performance and cost.
3. Different Shapes:
• Round: The classic shape for moving fluids and gases, and also used structurally.
• Square & Rectangular: Popular for building frameworks, architectural details, and equipment where flat mounting surfaces are needed.
• Hexagonal & Bush Hex: Used for making specific types of fittings, connectors, or parts that need flat sides for wrenches.

Choosing between seamless and welded, or deciding on the shape, really depends on your specific needs – things like the pressure and temperature involved, how critical the application is, the dimensional accuracy you need, and of course, your budget. Our team is here to help you figure out the best Inconel 600 Alloy Pipes or tubes for your project.

Applications and Industries Served

Thanks to its impressive set of properties, Inconel 600 Pipes & Tubes are vital components in a surprisingly wide range of demanding fields:

• Heat Treating: Found inside furnaces as muffles, retorts, baskets, fixtures, and radiant tubes. It holds up well in the intense heat and often challenging atmospheres (like carburizing or nitriding) common in this industry.
• Chemical Processing: Used to handle all sorts of chemicals, from organic compounds and fatty acids to strong alkalis. It's also good for processes using chlorine or hydrogen chloride at moderate temperatures. You'll see it in reactors, piping, and vessels where fighting off general corrosion and stress corrosion cracking is crucial.
• Aerospace: Plays a role in jet engines (think combustion liners, seals), airframes, and even rocket motors where materials need to be strong and resist oxidation at very high temperatures.
• Nuclear Power: Chosen for parts inside nuclear reactors, like the main vessel components, steam generator tubing, and control rod hardware, because it resists corrosion well in the high-purity water used and handles radiation exposure.
• Power Generation (Fossil Fuel & Nuclear): Used for components like superheater tubing, parts inside boilers, and systems that handle hot flue gases.
• Pollution Control: Equipment like industrial scrubbers and ductwork that must handle corrosive exhaust gases benefit from Inconel 600's resilience.
• Pulp and Paper: Used in equipment that processes the corrosive liquids involved in papermaking.
• Food Processing: Suitable for equipment that needs to resist food acids and withstand high temperatures during cooking or cleaning.
• Cryogenics: Because it stays tough at very low temperatures, it's used for handling liquefied gases.
• Electronics & Sensors: Its stability and oxidation resistance at high temperatures make it ideal for sheathing thermocouples.

The sheer versatility of Nickel Alloy 600 Pipes & Tubes allows them to solve tough material problems where standard options just wouldn't last.

Inconel 600 Pipes & Tubes Size Chart

At USA Piping Solution, we keep a solid inventory of the most commonly requested sizes and schedules for Inconel 600 pipes and tubes. While stock levels always change, here’s a general idea of what we usually have or can quickly get for you:

• Nominal Pipe Sizes (NPS): You'll typically find 1/8" through 12" readily available. Larger sizes are often possible through welded or fabricated options.
• Pipe Schedules: Common stock includes Sch 10S, Sch 40S, and Sch 80S. We can also source other schedules like Sch 5S, Sch 160, XS, and XXS if needed.
• Tube Outside Diameters (OD): We cover a wide range, from small fractional sizes (like 1/8" or 0.125") up to 6 inches and sometimes larger. Common fractional and metric sizes are usually on hand.
• Tube Wall Thicknesses: Everything from lighter gauges (e.g., 0.020", 0.035", 0.049", 0.065") up to heavier walls matching pipe schedules or specific BWG requirements.

Just a Few Examples (Check with us for current availability):

• 1/2 inch Schedule 40S Seamless Pipe
• 1 inch Schedule 40S Seamless Pipe
• 2 inch Schedule 80S Seamless Pipe
• 4 inch Schedule 10S Welded Pipe
• 1/4" OD x 0.035" Wall Seamless Tube
• 1/2" OD x 0.049" Wall Seamless Tube
• 3/4" OD x 0.065" Wall Seamless Tube
• 1" OD x 0.065" Wall Welded Tube

Don't See Your Size? Customization is Our Strength! We know standard sizes don't work for every job. USA Piping Solution specializes in providing Inconel 600 Pipes & Tubes cut precisely to your needed length, arranging for custom OD/Wall combinations, and meeting specific finishing requests. Contact us with your exact requirements, and we'll get you a fast quote.

Certifications and Compliance Standards

Quality isn't just a buzzword here; it's fundamental. Every piece of Inconel 600 Pipe & Tube from USA Piping Solution comes from reputable mills and includes full documentation, so you can be confident it meets tough industry standards and your own specs

• Proof of Quality (MTCs): Every shipment includes a Mill Test Certificate (MTC) following the EN 10204 Type 3.1 standard (or Type 3.2 if you need third-party verification). This document is your proof, detailing the exact chemical makeup, results of mechanical tests (like strength and elongation), how it was heat-treated, and any non-destructive tests performed for that specific batch of material.
• Meeting the Standards: Our products are made to conform to the relevant ASTM and ASME standards we listed earlier (like ASTM B167 for seamless pipe, ASME SB-163 for seamless tubes, etc.).
• ISO 9001 System: Our operations follow the ISO 9001:2015 framework for quality management. This means we have consistent, documented processes for how we select suppliers, inspect materials, store them, and get them delivered to you.
• NACE Compliance (if needed): If your application involves sour gas (H2S) or needs to meet specific corrosion standards, we can supply material compliant with NACE MR0175 / ISO 15156.
• PED for European Projects: Need materials that meet the European Pressure Equipment Directive? We can often supply products certified for PED requirements.
• Extra Testing Options: Sometimes, projects require additional checks. We can arrange for supplementary tests like ultrasonic testing (UT), eddy current inspection, hydrostatic pressure tests, impact toughness tests (Charpy), checks for intergranular corrosion susceptibility, or Positive Material Identification (PMI) to verify the alloy on-site.

Our focus on certification and compliance gives you peace of mind, knowing you're receiving Inconel 600 Pipes & Tubes that deliver top-tier quality, safety, and reliable performance.

Why Choose USA Piping Solution for Inconel 600 Pipes & Tubes?

When you're dealing with critical components like Inconel 600 piping, picking the right supplier makes all the difference. Here’s why customers trust USA Piping Solution:

• Ready Inventory: We keep a substantial stock of Inconel 600 Pipes & Tubes in many common types, sizes, and specs. This often means quicker delivery for your urgent needs.
• Quality You Can Count On: We only work with qualified, trusted mills and have strict checks for all incoming materials. Our commitment shows in the detailed MTCs we provide and our adherence to global standards.
• Know-How on Your Side: Our sales and technical teams really understand nickel alloys and where they work best. We can help you choose the right grade and specifications for your specific operating environment.
• Solutions Made for You: Need something non-standard? We offer precise cutting, can source or arrange manufacturing for custom sizes, and handle special testing or finishing requests.
• Fair Pricing: Thanks to strong relationships with our suppliers and efficient operations, we aim to provide competitive prices without ever cutting corners on quality.
• Dependable Delivery: We know project schedules are tight. Our logistics setup ensures your materials arrive reliably and on time, across the United States.
• We Listen: Our goal is to build lasting relationships. That means responsive service, clear communication, and working with you to find the best solution for your specific project.
• Experience Matters: We have a strong history of supplying high-performance alloys to industries with tough demands. Engineers and buyers rely on us.

Make USA Piping Solution your go-to partner for Inconel 600 Alloy Pipes and tubing.

Related Products

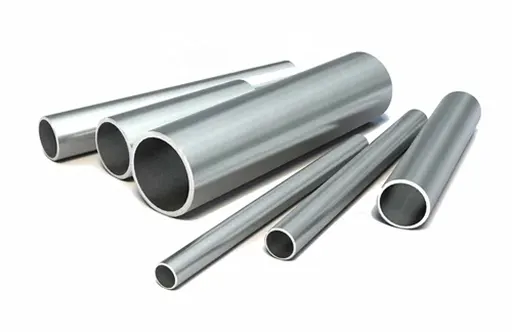

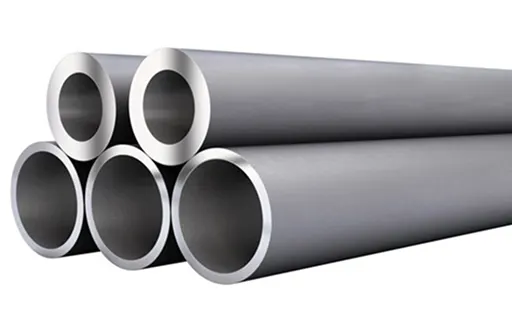

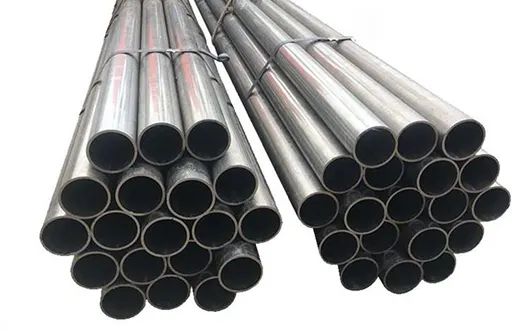

In addition to Inconel 600, USA Piping Solution carries a broad inventory of other high-performance piping materials:
