Understanding SAE J356 Welded Hydraulic Tubing

What role does SAE J356 Welded Hydraulic Tubing play in industrial applications? This specification from the Society of Automotive Engineers outlines requirements for a particular kind of pressure tubing: single-wall, low-carbon steel, produced via electric resistance welding (ERW). Critically, it mandates control over the internal weld flash and requires a normalizing heat treatment after welding. Its design purpose centers on suitability for pressure lines where fabrication involves bending, beading, brazing, and specifically double flaring.

The standard itself highlights an important limitation: due to the remnant of the internal weld bead (even when controlled), J356 tubing is not recommended for single-flare connections, as this geometry could present a potential leak path. Double flares are the intended connection method. Managing the height of the internal weld flash is a defined requirement, contributing to a smoother bore than standard uncontrolled ERW tubing. The normalizing step serves to refine the steel's grain structure, enhancing overall ductility and consistency, particularly important for reliable bending and forming results. Therefore, this Welded Low Carbon Steel Tubing serves as a standard, economical choice for many fluid line systems where good formability combined with controlled internal features meets the design requirements.

SAE J356 Tubing Specifications

For reliable performance in hydraulic lines, tubing must conform precisely to the established SAE J356 standard. USA Piping Solution provides materials manufactured to meet these specific technical criteria.

Key Technical Details

Specification	Details
Governing Standard	SAE J356 (Welded Flash Controlled Low Carbon Steel Tubing Normalized for Bending, Double Flaring, and Beading)
Material	Low Carbon Steel, with specific chemical limits defined
Production Method	Electric Resistance Welding (ERW), internal flash control during or after welding, followed by a normalizing heat treatment. J356 Type-A uses in-line annealing
Typical Size Range (OD)	Common hydraulic line dimensions, frequently available from smaller diameters up through approximately 4 inches OD
Wall Thicknesses	Standard gauge thicknesses for pressure lines (e.g., 22 Ga / 0.028" to 10 Ga / 0.134" and heavier)
Form	Round tubing; Type-A is often produced in coils
Ends	Plain Ends (PE), cut square for fabrication
Lengths	Random lengths or specific cuts like 20 feet; cut-to-length services available. Type-A typically in coiled form
Dimensional Tolerances – Outside Diameter	±0.0025" up to 3/8" OD, widening to ±0.010" for 3.5"–4" OD
Dimensional Tolerances – Wall Thickness	Allowable variation based on OD and nominal wall (e.g., +.002"/-.004" to over ±0.010")
Dimensional Tolerances – Internal Weld Flash	0.005" max for thin walls <1" OD, up to 0.010" max for thicker sections
Surface	Suitable for pressure lines with standard mill cleanliness. Special internal cleanliness requirements should be addressed separately

Chemical Composition and Mechanical Properties

The utility of SAE J356 Welded Hydraulic Tubing hinges on its low-carbon steel composition, which enables good formability after normalizing, combined with sufficient strength for pressure line service.

Chemical Requirements (% by Weight)

The standard specifies limits on key elements to ensure weldability and ductility. Note the allowances for Type-A differ slightly.

Element	J356 Limits (%)	J356 Type-A Limits (%)	Influence on Performance
Carbon (C)	0.06 min / 0.18 max	0.02 min / 0.18 max	Low carbon content promotes the necessary ductility for forming.
Manganese (Mn)	0.30 min / 0.60 max	0.10 min / 0.60 max	Provides baseline strength; range adjusted for Type-A process.
Phosphorus (P)	0.040 max	0.040 max	Impurity control helps maintain toughness.
Sulfur (S)	0.060 max	0.050 max	Limiting sulfur aids weld quality and formability.

These chemical boundaries are set to deliver reliable fabrication and service characteristics.

Mechanical Property Benchmarks

SAE J356 sets minimum strength and elongation levels, plus a maximum hardness, ensuring the tubing is both strong enough for pressure and soft enough to form easily.

Property	Required Value (SAE J356 & Type-A)	Significance for Application
Yield Strength	25,000 psi (172 MPa) min	Stress level needed to begin permanent bending.
Tensile Strength	45,000 psi (310 MPa) min	The ultimate stress the tube can withstand before breaking.
Elongation	35% min (in 2 inches)*	Crucial: Confirms high ductility needed for reliable bending and flaring.
Hardness (Rockwell B)	65 HRB max**	Crucial: Ensures the tube is soft enough to be readily formed without cracking.

 Tubing ≤ 3/8" OD or ≤ 0.035" wall may have a 25% minimum elongation requirement.
* Testing typically not mandated for walls under 0.065" (16 Ga).

Confirming Performance through Testing (per SAE J1677 / J356):
The standard requires practical tests demonstrating the tubing's suitability:

• Flattening Test: Checks weld and material soundness under compression.
• Flaring Test (Double Flare): Directly verifies suitability for double flaring without cracking.
• Reverse Flattening Test: Further examines weld integrity.
• Expansion Test: Assesses ability to stretch circumferentially.
• Pressure Proof Test / NDE: Confirms leak tightness and pressure handling capability.

Meeting these test requirements provides assurance that J356 Hydraulic Tubing is fit for its intended purpose.

A Note on SAE J356 Type-A Tubing

Within the SAE J356 standard, there exists a variant designated Type-A. This typically applies to smaller diameter (often ≤ 5/8" OD) and lighter wall tubing. The main processing difference lies in the heat treatment: instead of a separate normalizing step after the tube mill, Type-A undergoes annealing in-line as part of the continuous welding and forming process.

Key aspects of Type-A include:

• Integrated Heat Treatment: Annealing happens directly on the production line.
• Slight Chemistry Variation: Allows slightly broader ranges for minimum Carbon and Manganese compared to standard J356.
• Coil Production: Often produced and supplied in long coils, which is advantageous for automated fabrication lines. Straight lengths are also available via secondary processing.
• Equivalent Performance: Despite process differences, Type-A must meet the identical mechanical property specifications (strength, elongation, hardness) and pass all the same performance tests as standard J356.

Type-A offers an efficient manufacturing route for high-volume, smaller hydraulic lines, often delivered in coils, while maintaining the critical formability and integrity benchmarks of the J356 standard.

The Manufacturing Sequence for SAE J356 Tubing

Producing SAE J356 Welded Hydraulic Tubing follows a specific path designed to yield formable, pressure-capable tubes with controlled internal weld features:

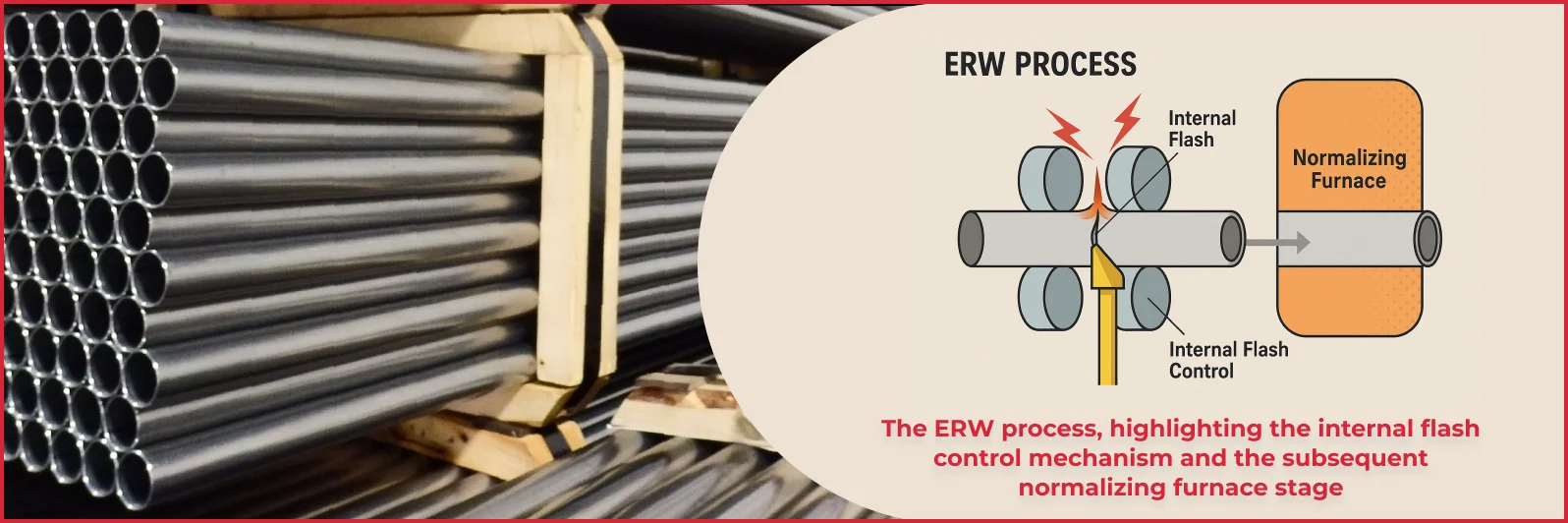

1. Strip Forming: Low-carbon steel strip, precision-slit to width, enters a forming mill where rollers gradually shape it into an open-seam tube.
2. ERW Welding: High-frequency electric current intensely heats the mating edges, which are then forged together under pressure by rollers, creating a longitudinal weld without added filler metal.
3. Internal Flash Control: Tooling operates immediately after welding to manage or remove the bead of excess metal formed on the inside surface during the weld, adhering to J356's strict height limitations.
4. Sizing: The tube passes through additional rollers to achieve the final target outside diameter.
5. Heat Treatment:
• Standard J356: The tube typically moves off-line to a normalizing furnace for a uniform heat treatment cycle, refining the microstructure.
• J356 Type-A: Annealing occurs as an integrated step within the mill line.
6. Cooling: Controlled cooling follows the heat treatment phase.
7. Cutting or Coiling: Tubing is either cut into specified straight lengths (common for J356) or wound into coils (common for Type-A).
8. Final Checks: Includes straightening (for lengths), end preparation, visual and dimensional inspections, and conducting the required performance tests (flattening, flare, pressure/NDE, etc.).

This structured process yields tubing specifically adapted for hydraulic line fabrication needs.

Benefits and Usage Considerations

Employing SAE J356 Welded Hydraulic Tubing offers practical advantages for fluid power systems, alongside certain factors to keep in mind during design and assembly:

Key Advantages:

• Reliable Formability: The low-carbon, normalized/annealed condition ensures excellent ductility, allowing straightforward bending and the creation of dependable double flares.
• Controlled ID Weld Bead: Specific limits on internal flash height provide a smoother bore compared to tubing without this control, beneficial for flow and fitting interaction.
• Pressure Worthiness: Designed and rigorously tested for suitability in typical hydraulic pressure line applications appropriate for its dimensions.
• Economic Choice: The ERW process generally makes J356 a cost-effective option compared to seamless alternatives like SAE J524 for many standard hydraulic line requirements.
• Joinability: The base material readily accepts brazing or welding if needed, although mechanical flaring is the primary connection method.

Important Considerations:

• Double Flares Recommended: The standard explicitly advises against single flares due to the internal weld bead potentially disrupting the seal. Double flaring is the method for which it is designed and tested.
• Welded Construction: Users should recognize it is an ERW product. While highly reliable due to process controls and testing, applications with extreme pressure cycling, vibration, or zero tolerance for any weld presence might lead designers to consider seamless options.
• Ductility vs. Strength: The normalizing/annealing ensures high ductility but results in lower strength compared to cold-drawn (but not annealed) tubing. It offers a balance optimized for forming hydraulic lines.

Awareness of these characteristics helps ensure J356 tubing is used appropriately and effectively.

Where is SAE J356 Tubing Commonly Used?

SAE J356 Welded Hydraulic Tubing is a widely adopted standard for fluid lines across many industries, valued for its balance of performance and cost:

• Automotive Systems: Frequently used for power steering pressure and return lines, transmission oil cooler lines, certain fuel lines, and hydraulic clutch actuation lines.
• Agricultural Machinery: Forms hydraulic circuits for implement control, steering assist, and other powered functions on tractors, combines, and related equipment.
• Construction Equipment: Employed in hydraulic systems on various types of construction machinery like loaders, backhoes, and skid steers for operating cylinders and controls.
• General Industrial Machinery: Utilized in the hydraulic power and control circuits of machine tools, presses, material handling systems, and factory automation.
• Utility and Service Vehicles: Found in the hydraulic systems powering lifts, tools, and other functions on service trucks and utility equipment.
• Other Pressure Line Applications: Suitable for various non-hydraulic applications requiring easily formed low-carbon steel tubing for carrying fluids or gases at moderate pressures, where double flaring or brazing is acceptable.

Its blend of reliable formability, controlled internal quality, and economic production makes J356 Hydraulic Tubing a practical solution for countless medium-duty fluid power conveyance needs.

SAE J356 Tubing Size and Weight Data

OD (in)	Wall (in)	ID (approx in)	Wt (lbs/ft)	Wt ( kg/m )	Gauge (approx)
0.250	0.028	0.194	0.066	0.098	22 Ga
0.313	0.035	0.243	0.104	0.155	20 Ga
0.375	0.035	0.305	0.127	0.189	20 Ga
0.375	0.049	0.277	0.171	0.254	18 Ga
0.500	0.049	0.402	0.236	0.351	18 Ga
0.500	0.065	0.370	0.302	0.449	16 Ga
0.625	0.049	0.527	0.301	0.448	18 Ga
0.625	0.065	0.495	0.389	0.579	16 Ga
0.750	0.065	0.620	0.476	0.708	16 Ga
0.750	0.083	0.584	0.591	0.880	14 Ga
0.875	0.065	0.745	0.562	0.836	16 Ga
1.000	0.065	0.870	0.649	0.966	16 Ga
1.000	0.083	0.834	0.813	1.210	14 Ga
1.250	0.083	1.084	1.034	1.539	14 Ga
1.250	0.095	1.060	1.172	1.744	13 Ga
1.500	0.095	1.310	1.426	2.122	13 Ga
1.500	0.120	1.260	1.769	2.633	11 Ga
2.000	0.120	1.760	2.409	3.585	11 Ga
2.500	0.120	2.260	3.050	4.539	11 Ga

Note: ID is approximate. Weights are based on nominal dimensions.

Documentation and Compliance Confirmation

Verifying that tubing adheres to SAE J356 is essential for its appropriate use in pressure lines. USA Piping Solution ensures materials are provided with confirmation of quality standards.

• SAE J356 Standard Compliance: Material supplied is certified by the manufacturer to conform to all requirements of SAE J356. This includes the specified low-carbon chemistry, the defined ERW/flash control/normalizing production method, dimensional tolerances (including internal flash), mechanical properties, and successful completion of all required performance evaluations (flattening, flare, pressure testing, etc.).
• Traceability: Production lots can be traced using heat numbers or similar identifiers, connecting the product to manufacturing and testing data.
• Certification Documents: Certificates of Conformance (CoC) or Mill Test Reports (MTRs) verifying compliance with SAE J356, including confirmation of testing, are available to support material validation.
• Quality Management System: Our internal procedures align with ISO 9001 standards, ensuring consistency in how we manage our supply chain and verify material quality.
• Product Identification: Industry standards for marking are followed, typically involving tagging bundles with manufacturer details, the SAE J356 reference, size, and traceability information.

This documentation provides the necessary assurance regarding the tubing's suitability for applications specifying SAE J356.
